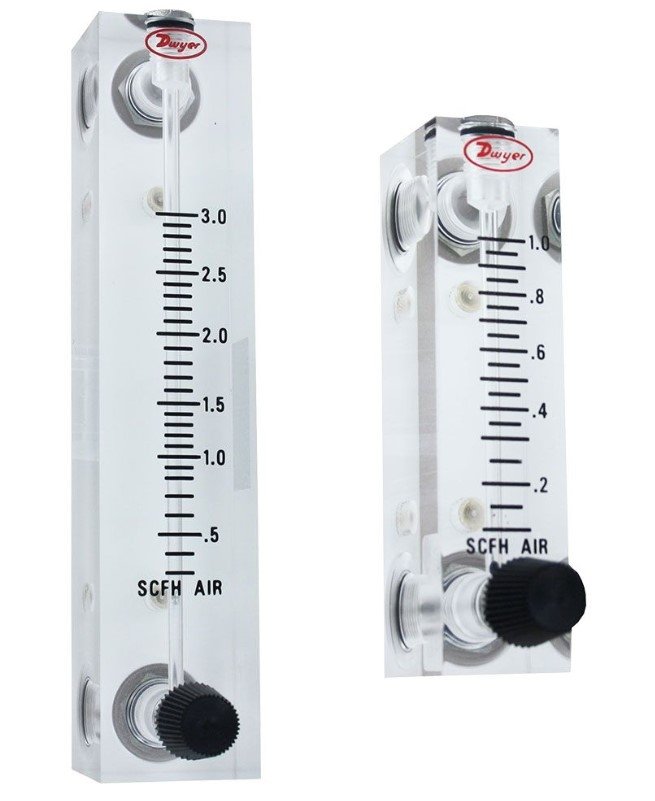

Dwyer VFA-22-SS | Visi-Float Acrylic Flowmeter | 0.15-1 LPM Air, 2" Scale, 5% FS

Part Number : VFA-22-SS

Dwyer's VFA-22-SS measures flow from 0.15-1 LPM (air) on a 2" (51 mm) scale, using a transparent acrylic body machined for gas and liquid applications. Wetted parts of the VFA-22-SS include an acrylic body and a Buna-N O-ring, with fluoroelastomer available.

  • With valve: 100 psig (6.9 bar) at up to 120 °F (48 °C)
  • Acrylic body, Buna-N O-ring; nickel-plated brass metal parts (SS optional)
  • Weighs 4.0 to 4.8 oz (0.11 to 0.14 kg)
  • Designed for vertical installation
  • Meets EU Directive 2011/65/EU (RoHS II)
  • 5% of full scale accuracy
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
