Dwyer Instruments VFA-3 | Flowmeter | Range .6-5 SCFH air

Name: Dwyer Instruments VFA-3 | Flowmeter | Range .6-5 SCFH air
Brand: Dwyer
SKU: VFA-3
Availability: OutOfStock

Part Number : VFA-3

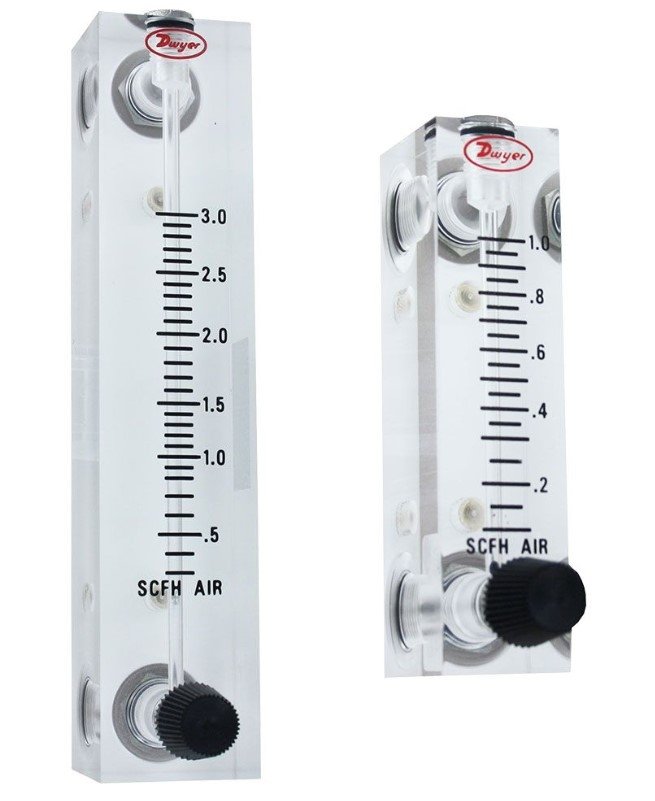

A range of transparent acrylic body flowmeters with a clear acrylic body and precise machining that are ideal for gas and liquid applications is represented by the Model VFA-3 Visi-Float® Flowmeters. Visi-Float® flowmeters are manufactured with over 60 years of acrylic instrument machining knowledge. The 2" (51 mm) and 4" (102 mm) scales in this series come with optional precision metering valves.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	5% of FS
Approvals	Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Connection	Process: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves
Length	Scale: VFA 2" typical length VFB 4" typical length
Manufacturer	Dwyer Instruments
Material	Wetted: Body: Acrylic plastic O-ring: Buna-N (fluoroelastomer available) Metal parts: Nickel plated brass standard, SS optional Float: SS, black glass, aluminum, K monel depending on range
Mounting	Mount in vertical position
Range	.6-5 SCFH air
Temperature & Pressure Limits	Without Valve: 100 psig (6.9 bar) @ 150°F (65°C) 150 psig (10 bar) @ 100°F (38°C) With Valve: 100 psig (6.9 bar) @ 120°F (48°C)
Type	Visi-Float® Flowmeters
Weight	4.0 to 4.8 oz (.11 to .14 kg)

Attractive design with bodies that are cut and precisely machined from transparent, solid acrylic blocks permits full visual examination.
Improved reading accuracy because to the float's distinct appearance against a smooth white background.
With direct reading scales that are hot stamped into the plastic, there is no need for difficult conversions, and the product's operational life is extended.
High repeatability due to tapered bores that are precisely machined.
Reasonably priced installation with choices for back or end connections and metal mounting inserts that may be directly supported by system pipes.
