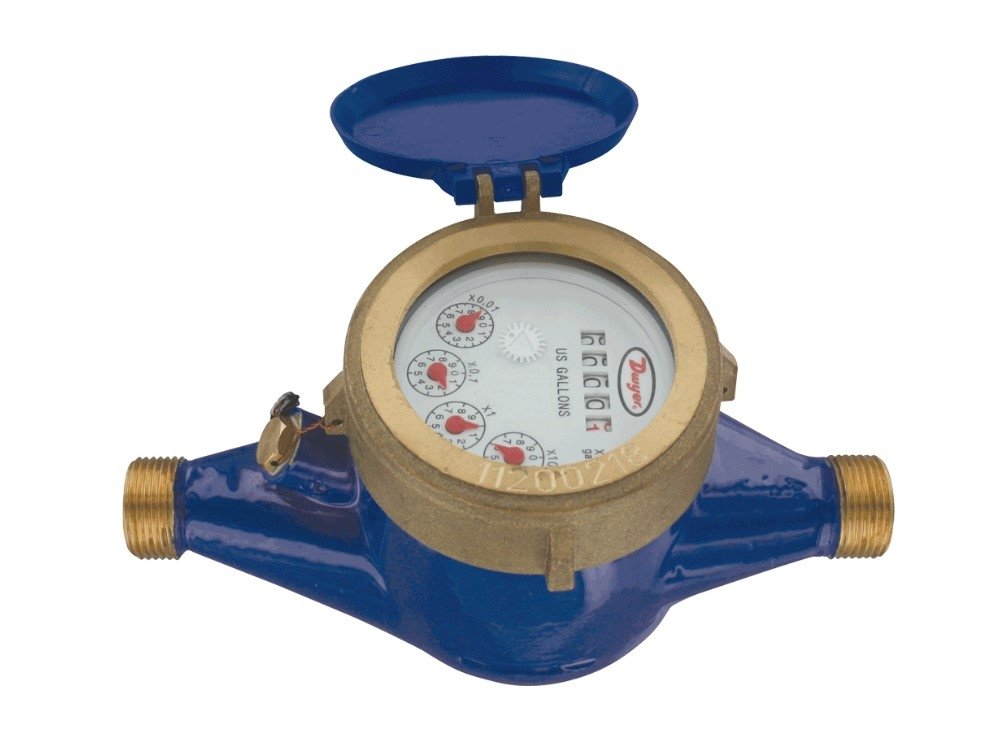

Dwyer WM2-B-C-12 | Multi-Jet Water Meter | 32mm brass, 12 m³/h max
Part Number : WM2-B-C-12
Dwyer WM2-B-C-12: a 32mm brass multi-jet meter that mechanically totals water consumption (m³/h version), with a maximum flow of 12 m³/h and a nominal range of 0.48 to 6 m³/h. NPT or BSPT couplings are available across the WM2 series that includes the WM2-B-C-12.
- Nominal-flow accuracy ±2%, transitional-flow accuracy ±5% (WM2-B-C-12)
- Transitional flow on the WM2-B-C-12: 0.12 m³/h
- Pressure limit 232 psi (16 bar); temperature limit 104°F (40°C) for the WM2-B-C-12
- Brass couplings and a brass/polyethylene body on the WM2-B-C-12, with a polyethylene, ABS, ferrite and acetal measuring chamber
- Horizontal installation for the WM2-B-C-12, with the register face pointing up
Free UAE shipping available
For pricing, please contact our experts.
