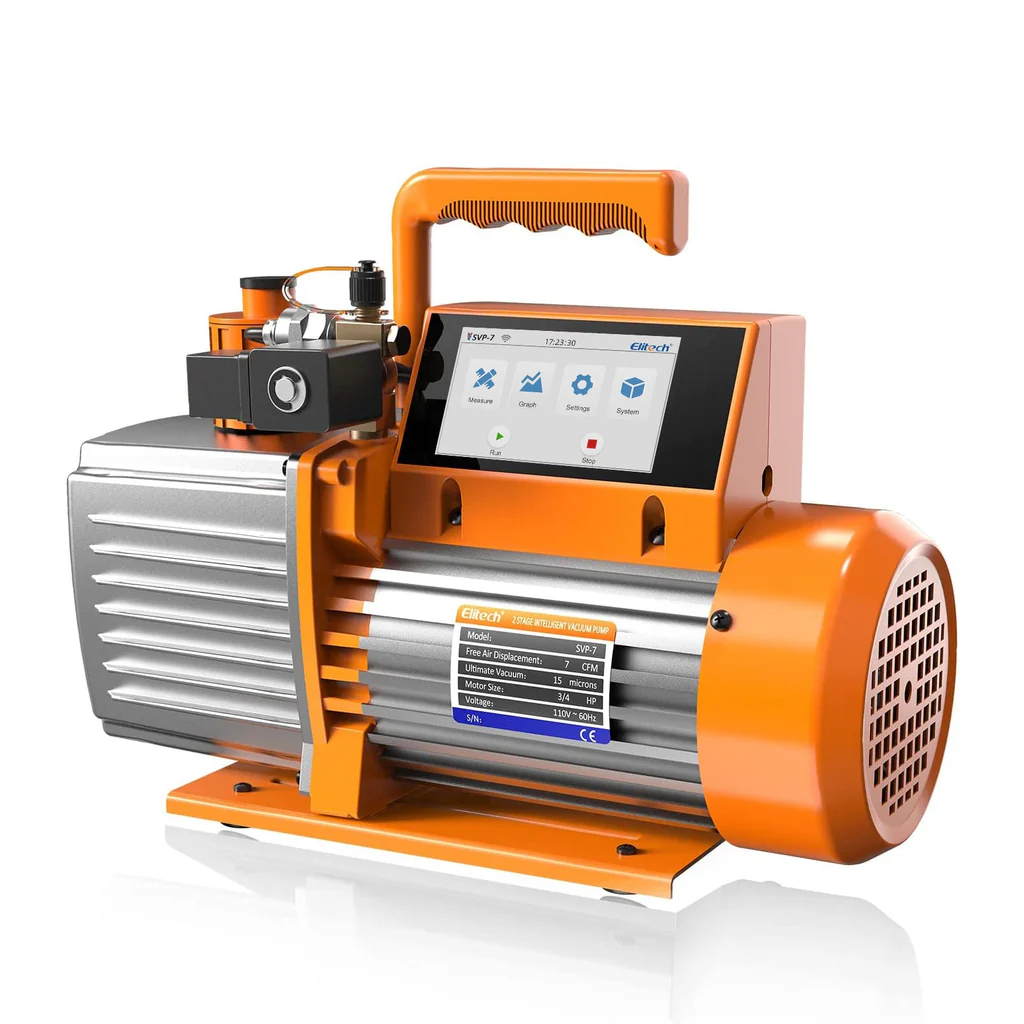

Elitech SVP-7-110V | Intelligent HVAC Vacuum Pump | 7 CFM 2 Stage Vacuum Gauge | App Control
The motor and solenoid valve will automatically shut off when the vacuum value that has been programmed is reached. The pump will immediately close the solenoid valve to protect itself from major flaws when it detects an abnormally high working temperature, which could be caused by a motor failure or low oil levels. Pump will determine system leakage level based on advanced analysis of vacuum value change and pump operating condition; leakage level will be shown in the bar for convenient access. The real-time vacuum value and graph will appear on the 4" touch screen for instantaneous information when the vacuum value falls below 60,000 microns.

Free UAE shipping available
- Specifications
- Features
Limit Vacuum | 15 Microns |
Motor Power | 3/4 HP (550W) |
Pumping Rate | 7 CFM (3 l/s) |
Transmission Distance | 30ft / 10m |
Weight | 34.2 lbs / 14.5 kg |
- Intelligent Control
- System Leakage Judgement
- Vacuum Value & Graph Display
- APP Monitoring
- Estimated Working Hour Needed
- Data Logging & Report Exporting
