Emerson QuickPanel+ HMI

Name: Emerson QuickPanel+ HMI
Brand: Emerson
SKU: Emerson QuickPanel+ HMI
Availability: OutOfStock

Part Number : Emerson QuickPanel+ HMI

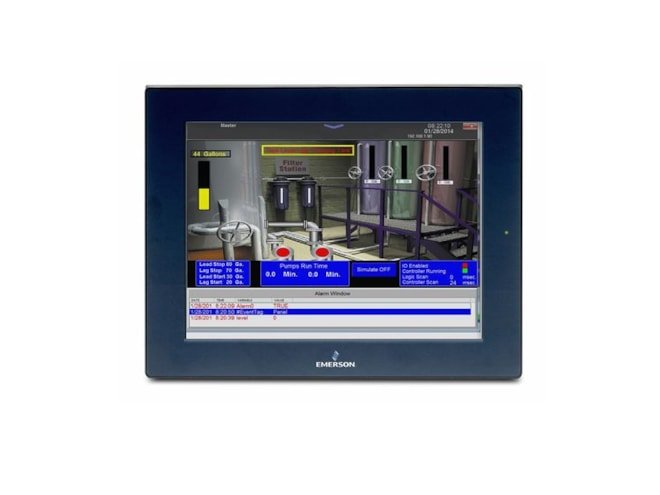

The Emerson QuickPanel+ HMI is more than just a human-machine interface; it can also act as a machine gateway, a PLC/process controller, and a data historian to simplify your system. It is as simple to use with just a swipe or tap of the finger and is designed to withstand industrial environments.

It is available in sizes ranging from 6 to 15 inches. The 6-inch model has a resistive single-touch screen, while the 7-inch and most importantly have projected capacitive multi-touch (2-point) screens for better resolution and pinch zooming.

Availability: Sold out

Free UAE shipping available

Features
Downloads

(ARM Cortex A8) Freescale i.MX535 1GHz CPU.
depending on the display, 512MB or 1GB of DRAM memory.
Non-volatile storage for SD/SDHC.
Plug-and-play connectivity with GE and third-party I/, as well as support for multimedia and the HTML5 browser.
operating system Windows EC7.
user-defined setting-based email and text alerts.
Functionality of object-based programming.
Operating temperature: 0 to 50°C (32 to 131°F).
Power requirement for the 3-pin connector is 24VDC at 20%.
UL Class I, Divisions 1, and 2, and Class II, Division 1.
RoHS and CE compliant.
