Flexbar 13420 | Shallow-Test Gage | Int. 0.55-5.20 in / Ext. 0.24-4.92 in

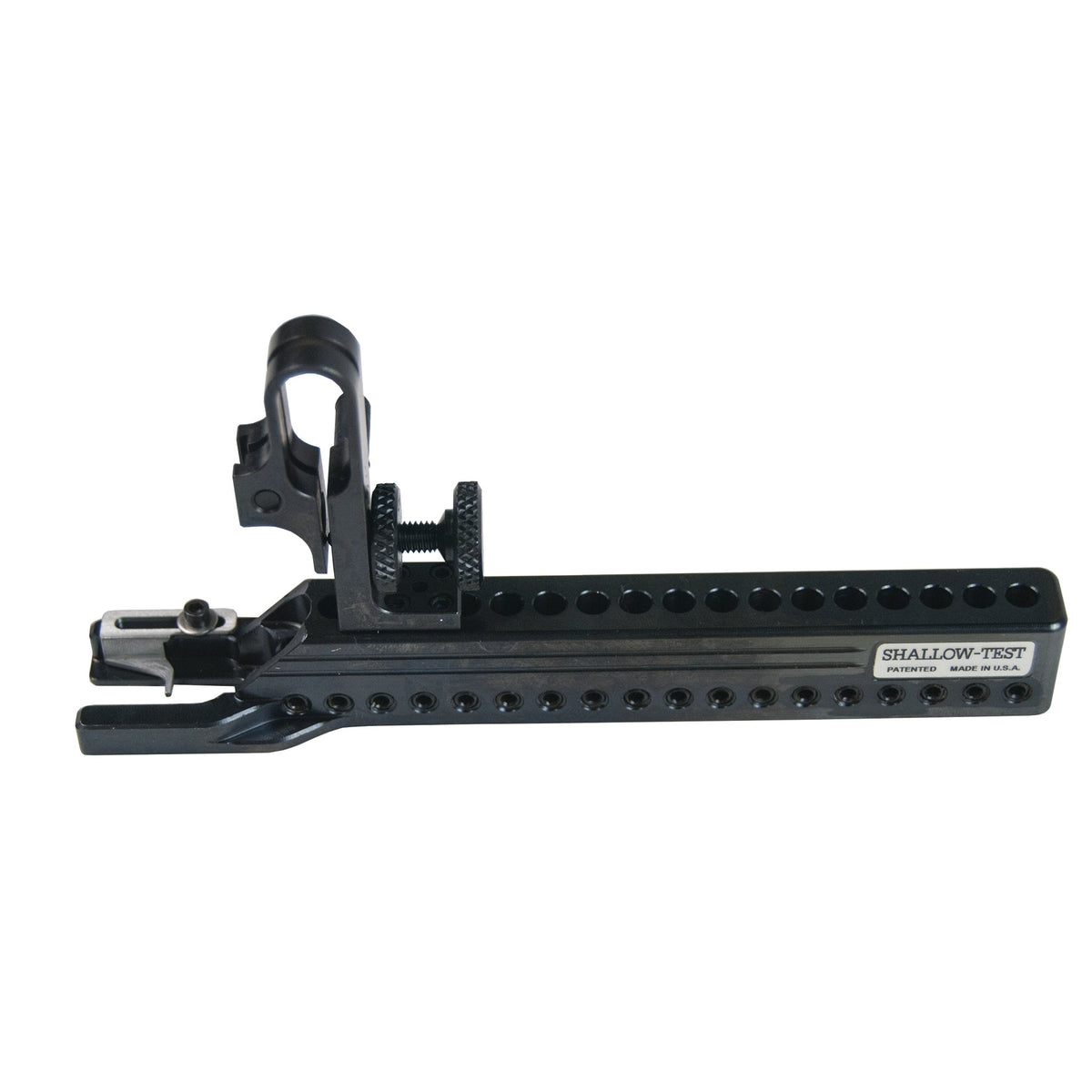

Flexbar 13420 is the Shallow-Test gage with the smallest ranges in the series: 0.55-5.20 in internal and 0.24-4.92 in external. Used with a test indicator, it measures shallow bores, outside diameters, slots and similar features. It is made in the USA from hardened tool steel with a black oxide finish.
Key features
- Internal range 0.55-5.20 in; external range 0.24-4.92 in

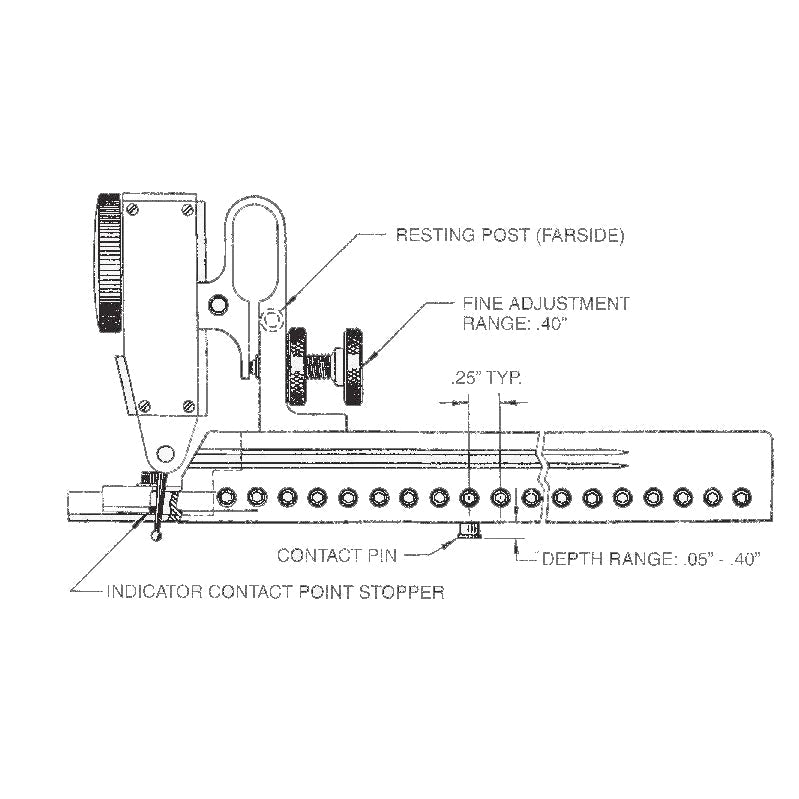

- Depth range 0.05-0.40 in
- Fine adjustment range 0.40 in; set with gage blocks, ring gage or qualified part
- Works with most horizontal, vertical or side-mounted test indicators (indicator not included)
- Indicator contact point stopper for smooth entry to the measuring area
- Includes hardened tool steel contact pin, two allen wrenches and storage box
- Specifications
| Part Number | 13420 |
| Brand | Flexbar |
| Indicator | Not included |
| Internal Range | 0.55-5.20 in |
| External Range | 0.24-4.92 in |
| Depth Range | 0.05-0.40 in |
| Fine Adjustment | 0.40 in |
| Contact Pin Hole Distance | 0.25 in |
| Material | Hardened tool steel, black oxide finish |
| Origin | USA |
