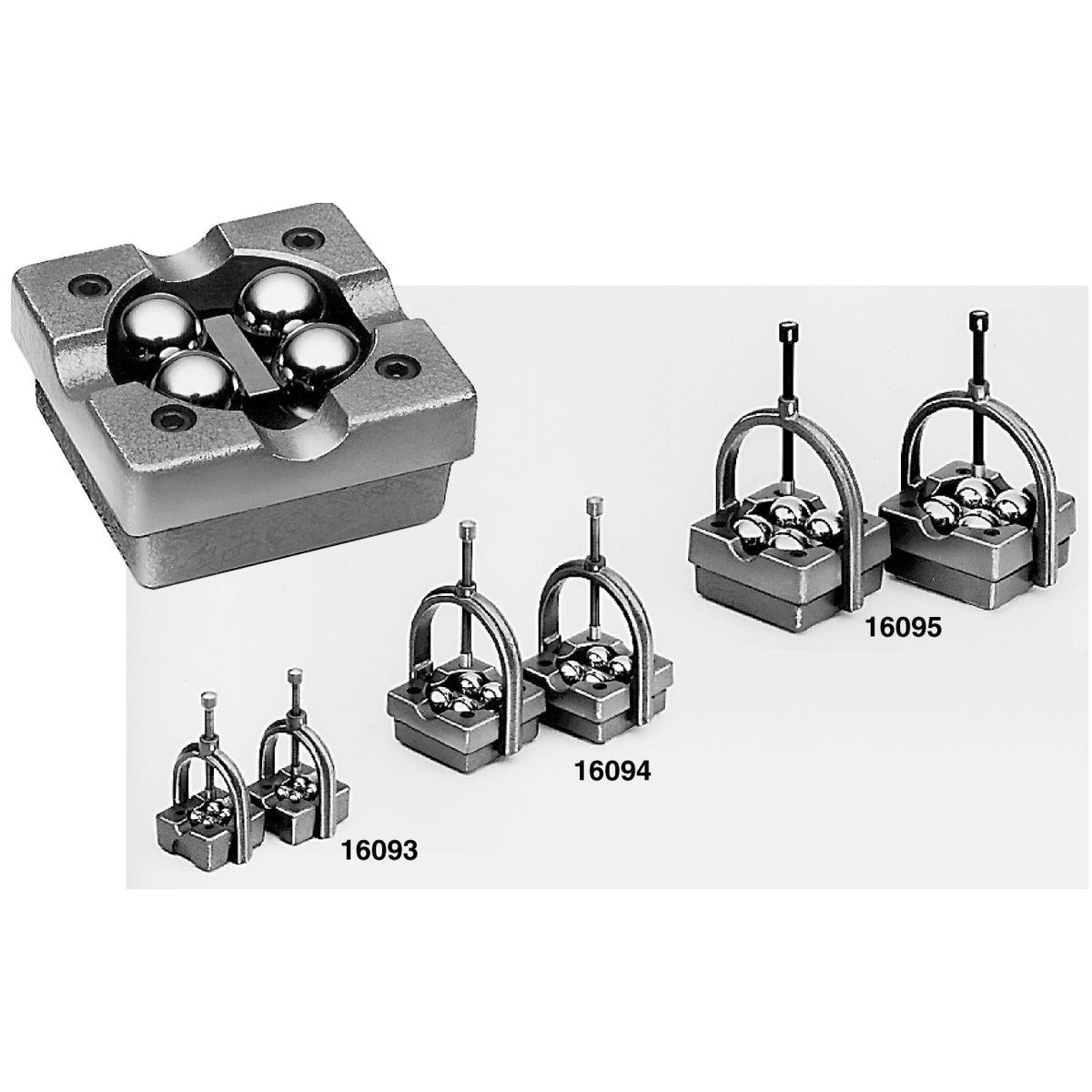

Flexbar 16094 | Ball Bearing V-Block with Clamps | Medium 3⅜ x 3⅜ x 2⅜ in
Part Number : 16094
Measuring 3⅜ x 3⅜ x 2⅜ in, Flexbar 16094 is the medium ball bearing V-block, a matched pair supplied with clamps for machining and a test ball. The precision balls are fixed in the blocks and deform only slightly under load, which helps detect lobes and out-of-round conditions without marking the work. Flexbar lists the medium range as 3/22-5 in.
Key features
- Ball sphericity 25 millionths of an inch
- Overall accuracy of matched pair ±5 microns
- Balls Rockwell C-62, 0.2 microinch surface finish; calibrated balls certified
- Heat-stabilised, seasoned Class 40 cast iron base and housing
- 8 contact points per pair; one precision spacer per block gives two angles per pair
Note: the balls are fixed in the blocks and are not designed to rotate in use.
For pricing, please contact our experts.
