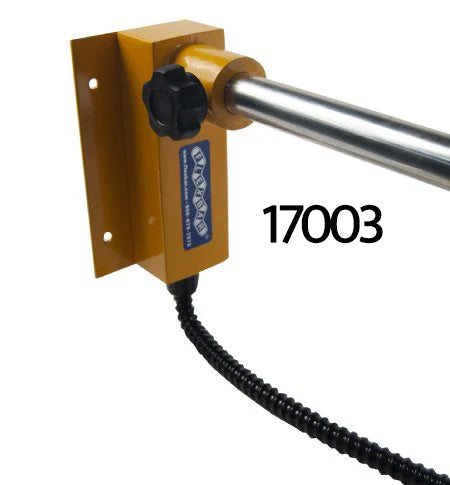

Flexbar 17003 | Electrical Interlocking Mounting Bracket | Style 3, Headstock Face Mount
Part Number : 17003

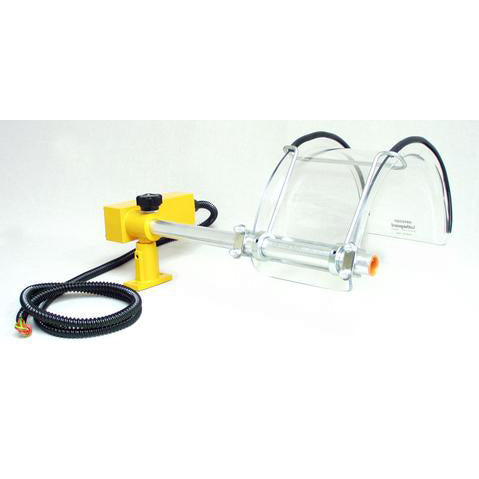

Model 17003 is Flexbar's Style 3 E.I.M.B., which fixes to the face of the lathe headstock. Its backplate can be turned through 180° on the housing, letting you place the flange on either the left or right side to suit the machine. Wired into the motor starter, it replaces the normal latheguard bracket and keeps the spindle from running while the chuck shield is raised.
Key features
- Mounts directly on the headstock face
- Reversible backplate puts the flange on the left or right

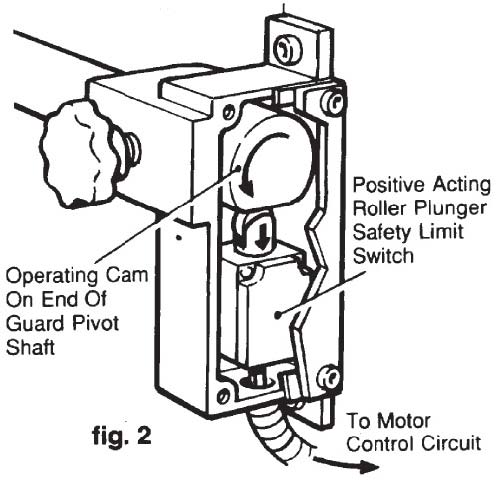

- Roller limit switch rated for 1 million electrical and 30 million mechanical cycles
- Double-break SPDT contacts in a sealed NEMA 4 switch
- Fits Flexbar Latheguards and Small Chuckguards of any shield size
For pricing, please contact our experts.
