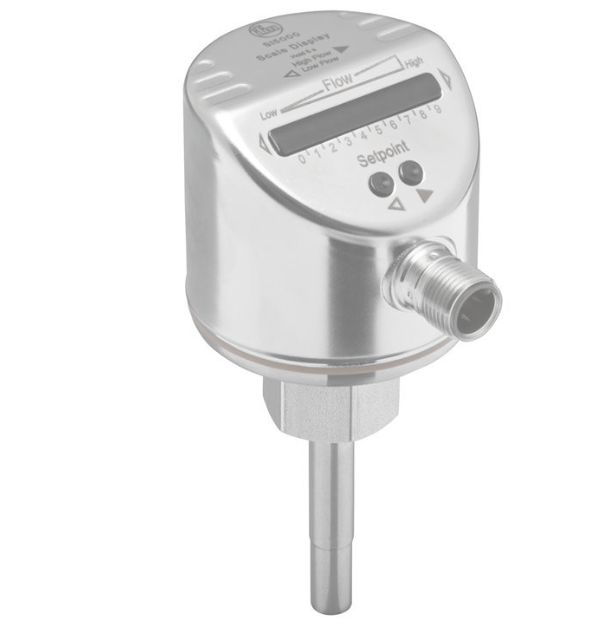

Flow monitor ifm electronic SI5007
The SI5007 flow monitor from ifm measures both liquid (3-300 cm/s) and gaseous (200-3,000 cm/s) media at a pressure rating of 300 bar.Thanks to the variable process connection (internal M18 x 1.5 thread for adapter) the SI5007 flow sensor can easily be integrated in the application. The high protection rating IP67 ensures reliable flow monitoring, for example in cooling circuits on machine tools.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 80 °C |
| Electrical design | PNP |
| Operating voltage [V] | 18-36 DC V |
| Output function | normally open / normally closed; (parameterisable) |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
