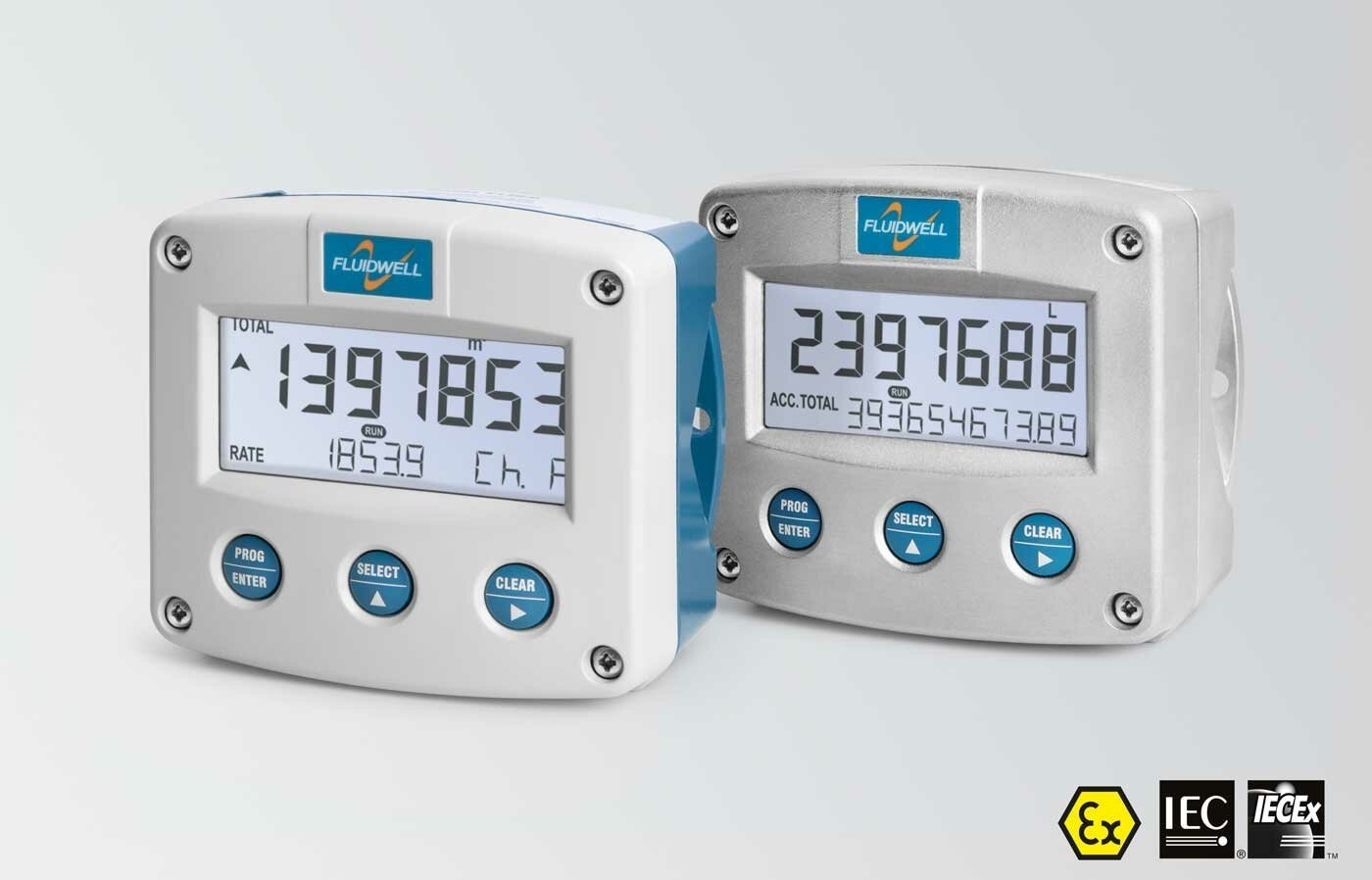

FLUIDLINE F111 Intrinsically safe - Dual input Flow rate Indicator / Totalizer | Temperatures between -40°C up to +80°C (-40°F up to 176°F).
With a pulse output for each flow, the F111 combines two flow rate indicators/totalizers into a single enclosure. The flows are unrelated to one another, and several input types for pulse signals can be employed.
On-screen engineering units are readily configured from a wide range for every flow. The F111 features an automated toggle mechanism that allows you to manually set it to display the specified information.

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. Different pulse signal types are allowed for input A and B. |
Power Supply | Long life Lithium battery. 4 " 20mA Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC. |
- Two flow rate/totalizers that are completely independent.
- There is one scaled pulse output per flow.
- concurrently shows the total, the flow rate, and the product ID.
- Large digit selection available for total or flow rate.
- Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
- Seven resettable 17mm (0.67") digits make up the totals.
- Eleven 8mm (0.31") numbers represent the accumulated totals, which are not resettable.
- distinct engineering units for the display's totals and flow rates.
- LED backlighting.
- intrinsic safety as defined by IECEx and ATEX.
- Enclosures made of GRP, aluminum, or premium stainless steel.
- EEPROM memory is used for automatic setting and running total backups.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
