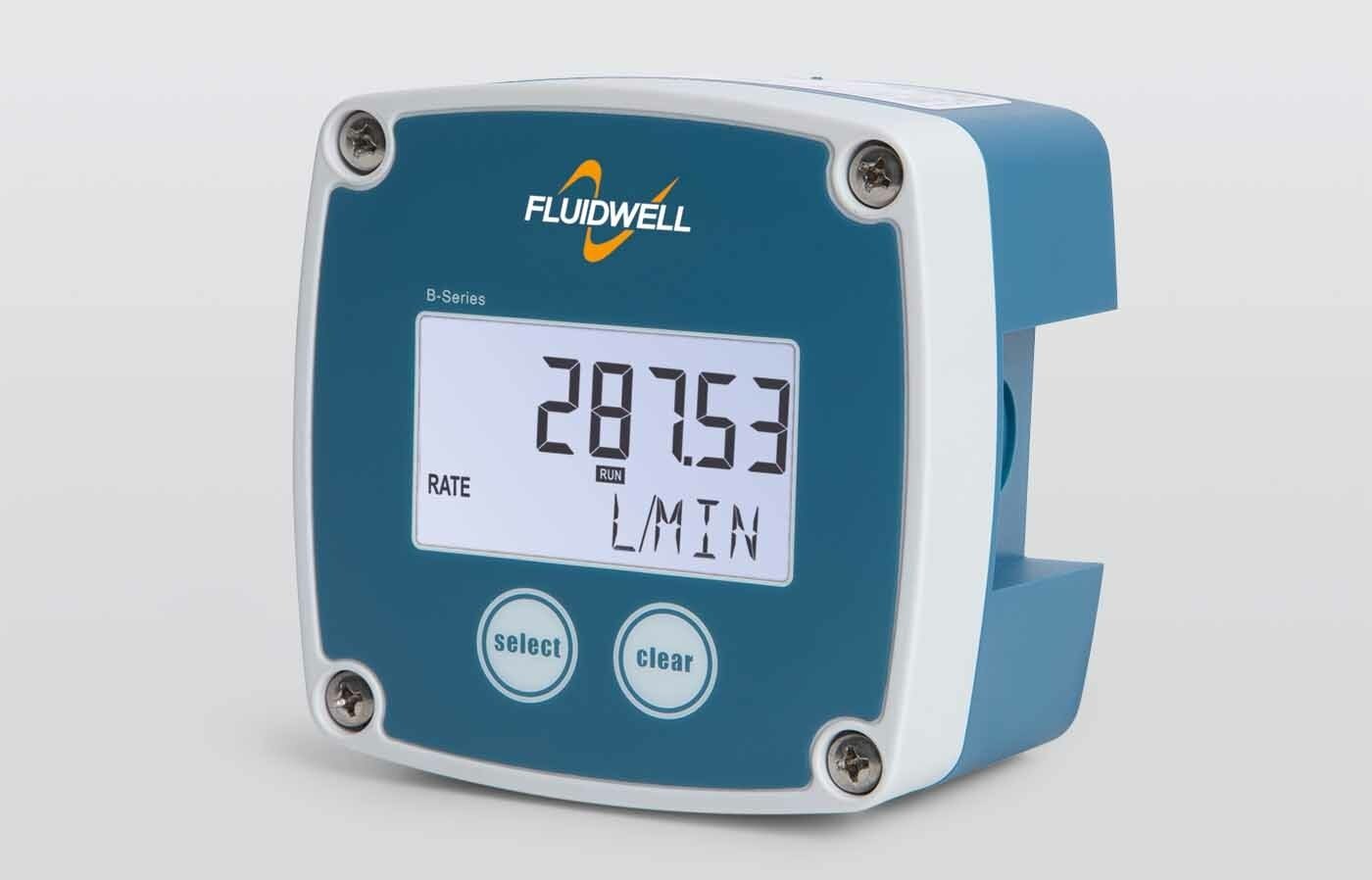

FLUIDWELL B - Basic Flow rate Indicator / Totalizer
The B-Basic is a local indication that shows the cumulative total, real flow rate, and total amount. Two CLEAR button presses will return the sum to zero. From a wide assortment, on-screen engineering units are simple to configure.

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Flowmeter Inputs Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil). |
Power Supply | A single 3,6V lithium AA battery. ` 10 " 30V DC. |
- small-scale layout.
- shows the total, accumulated total, and flow rate in real time.
- Sturdy IP65 (Type 4X) enclosure for a field, wall, or meter.
- Cable entry with one 20 mm (0.79") and two 16 mm (0.63") knock-out holes.
- "Know one, know them all" hierarchy of configurations.
- Simple programming and reading with a readable alphanumeric display.
- Clearly visible 7mm (0.3") alphanumeric and 12mm (0.5") numeric digits.
- LED backlight that is bright.
- Run totals and settings are automatically backed up.
- A 10–30V DC power source and a lithium AA battery.
