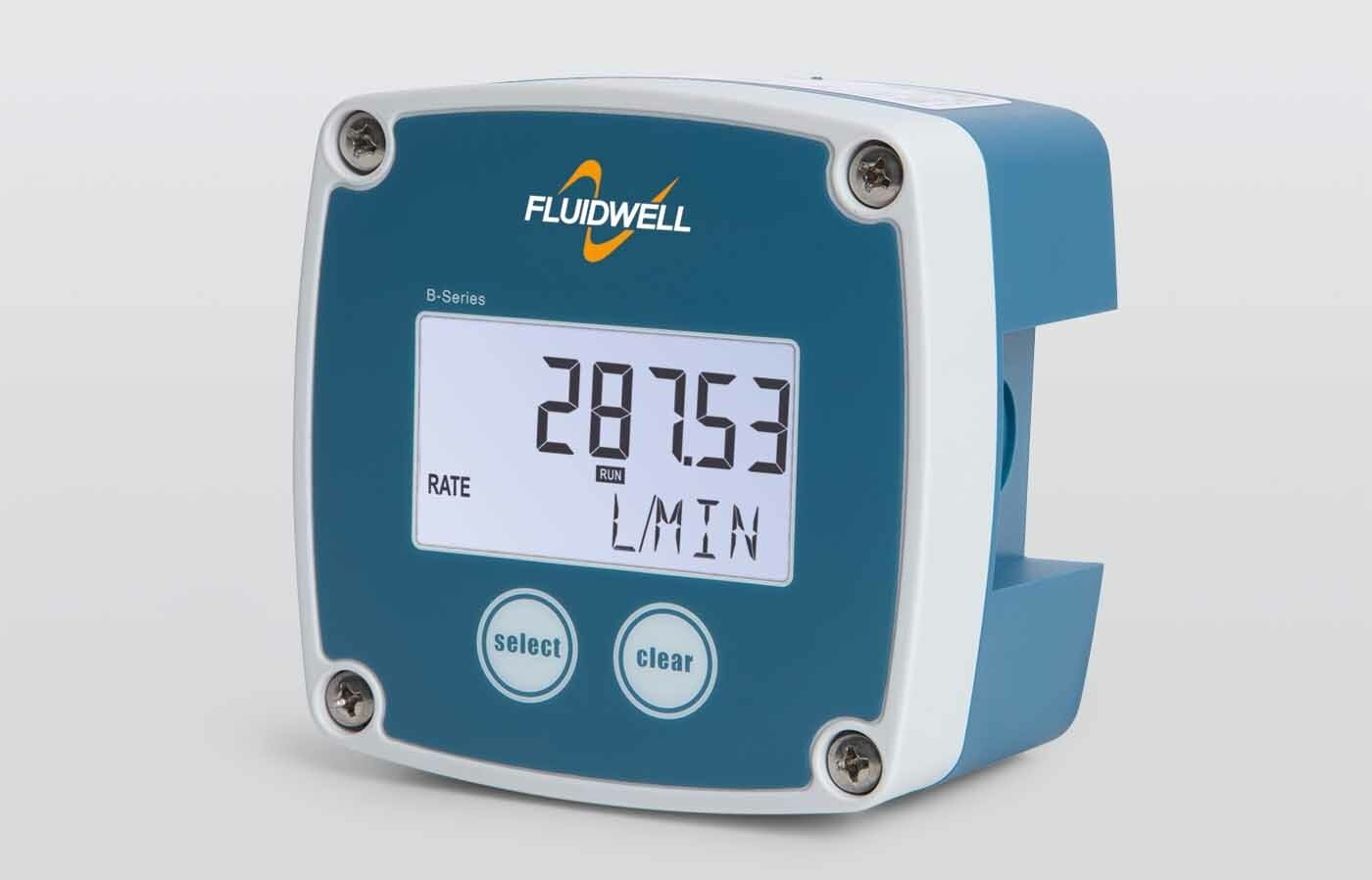

FLUIDWELL B-CONNECTED | Basic - Flow rate Indicator / Totalizer | with Modbus communication and isolated outputs

Name: FLUIDWELL B-CONNECTED | Basic - Flow rate Indicator / Totalizer | with Modbus communication and isolated outputs
Brand: FLUIDWELL
SKU: B-CONNECTED
Availability: OutOfStock

Part Number : B-CONNECTED

The B-Connected is a specific flow transmitter designed to be connected to an automation network or PLC due to its Modbus communication and segregated analog and pulse output signals. Flow rate, total, and cumulative total are displayed on the display. The cumulative total is retransmitted via the scaled pulse output. The flow rate is retransmitted via the analog output. From a wide assortment, on-screen engineering units are simple to configure.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Signal Inputs Flowmeter Inputs Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil).
Power Supply	A single 3,6V lithium AA battery. 10 " 30V DC. Sensor Supply : 8.2V DC.

small-scale layout.
shows the total, accumulated total, and flow rate in real time.
separate outputs for pulses and analogs.
RS485 Modbus communication.
Sturdy IP65 (Type 4X) enclosure for a field, wall, or meter.
Cable entry with one 20 mm (0.79") and two 16 mm (0.63") knock-out holes.
"Know one, know them all" hierarchy of configurations.
Simple programming and reading with a readable alphanumeric display.
Clearly visible 7mm (0.3") alphanumeric and 12mm (0.5") numeric digits.
LED backlight that is bright.
Run totals and settings are automatically backed up.
A 10–30V DC power source and a lithium AA battery.
Sensor power: 8.2 volts DC.
