FLUIDWELL D013 DIN Panel mount - Flow rate Monitor / Totalizer | with high low alarm output | Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Name: FLUIDWELL D013 DIN Panel mount - Flow rate Monitor / Totalizer | with high low alarm output | Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Brand: FLUIDWELL
SKU: D013
Availability: OutOfStock

Part Number : D013

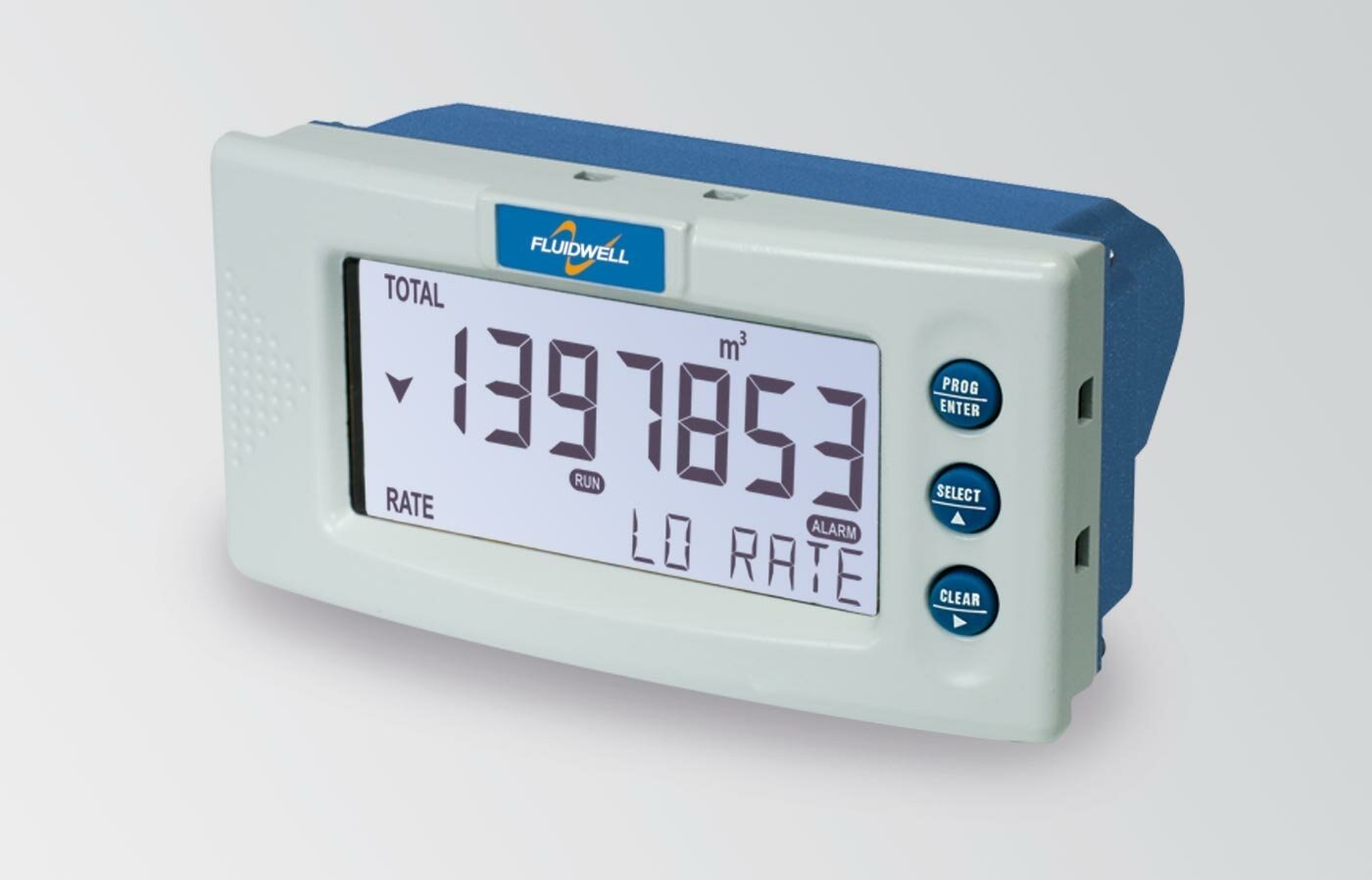

The D013 is a multipurpose panel mount flow rate totalizer and indicator that offers continuous flow rate monitoring. There is an alert value for both high and low flow rates. It is possible to configure an alarm ignore (delay) function to accept an inaccurate flow rate for a predetermined amount of time.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Signal Inputs Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. 0 " 10V DC.
Power Supply	Basic: 8 - 30V DC (no real sensor supply). Long life Lithium battery. 4 " 20mA input Loop-powered. 24V AC/DC + sensor supply. 115 " 230V AC + sensor supply. Sensor Supply 1.2 / 3V DC. 8.2, 12 & 24V DC.

shows the alarm messages related to flow rate, total, accumulated total, and total.
It is possible to enter the low and high flow rate alarm values.
Volumetric or mass engineering units are selectable on the screen.
Large flow rate or total digits measuring 17 mm (0.67").
the capacity to interpret any kind of flowmeter signal.
Run totals and settings are automatically backed up.
From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
LED backlight flashing red in the event of a flow rate alert.
Simple setup with readable alphanumeric text.
Aluminum DIN front panel measuring 144 x 72 mm (5.67" x 2.83") in accordance with IEC 61554 / DIN 43700.
