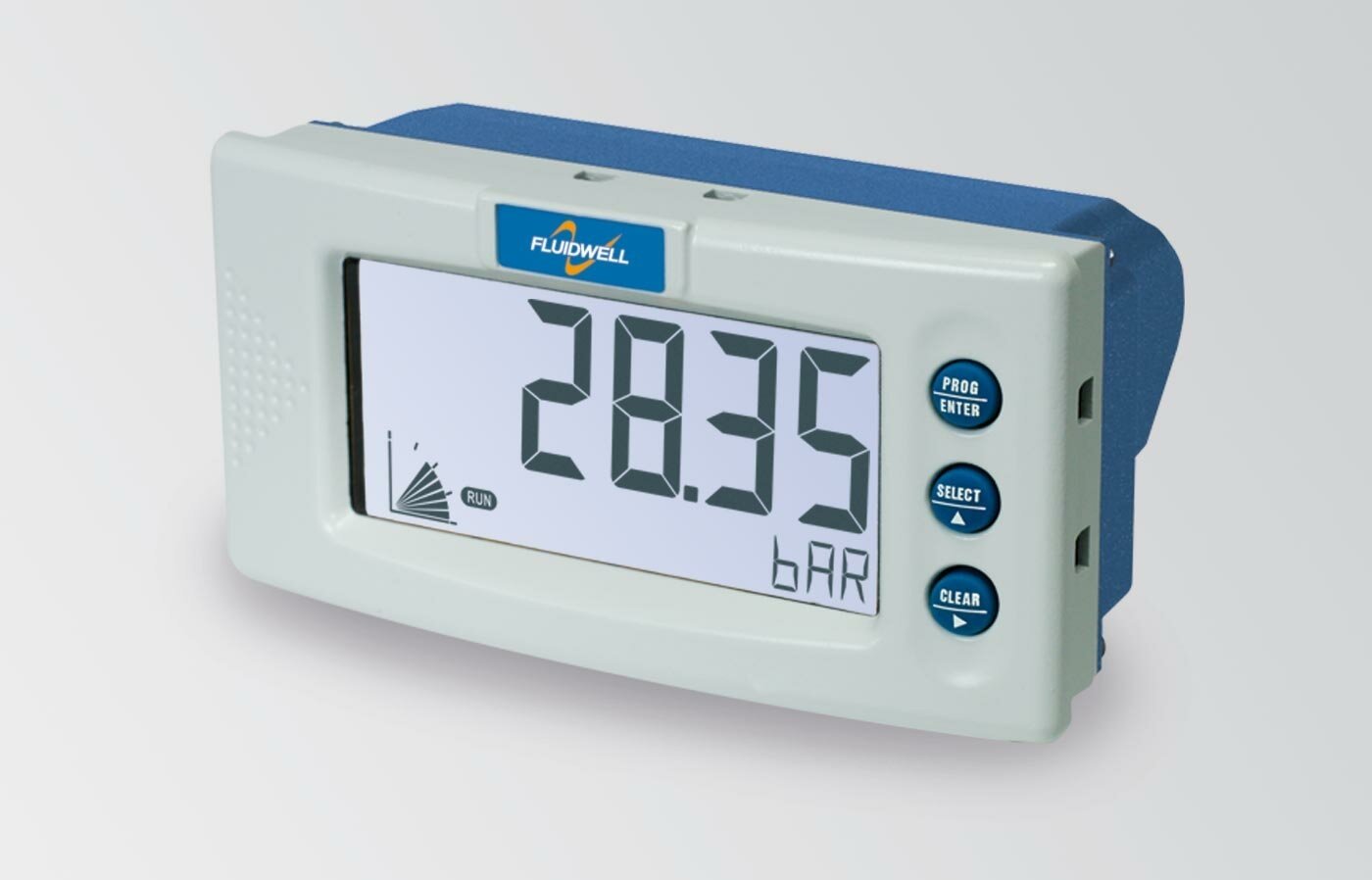

FLUIDWELL D050 DIN Panel mount - Pressure Indicator | with very large digits | Pressure input (0)4 – 20mA.
With big 26mm (1") high digits, the D050 panel mount pressure indicator is simple to use. It is easy to choose the measuring unit to be shown using an alpha-numerical configuration menu. An easy-to-use and weatherproof solution that eliminates the need for sticky labels to be placed outside the enclosure! Without the need of sensitive dip switches or trimmers, software features are used to configure the Span, off-set, and amount of decimals.

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Pressure Inputs (0)4 " 20mA. 0 " 10V DC. |
Power Supply | Basic: 8 - 30V DC (no real sensor supply). Long life Lithium battery. 4 " 20mA input Loop-powered. 24V AC/DC + sensor supply. 115 " 230V AC + sensor supply. Sensor Supply : 8.2, 12 & 24V DC. |
- shows the measuring unit and the current pressure.
- Exceptionally large 26 mm (1") digits.
- Ten segments indicate the piegraph.
- Pressure in digits: five and a half.
- Engineering units that can be chosen on-screen are mBar, Bar, and PSI.
- automatic backup of every configuration.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
- Backlighting with LEDs available.
- Simple setup with readable alphanumeric text.
- Aluminum DIN front panel measuring 144 x 72 mm (5.67" x 2.83") in accordance with IEC 61554 / DIN 43700.
