FLUIDWELL F010 Intrinsically safe - Flow rate Indicator | Input Signal (0)4 – 20mA | Temperatures between -40°C up to +80°C (-40°F up to 176°F).

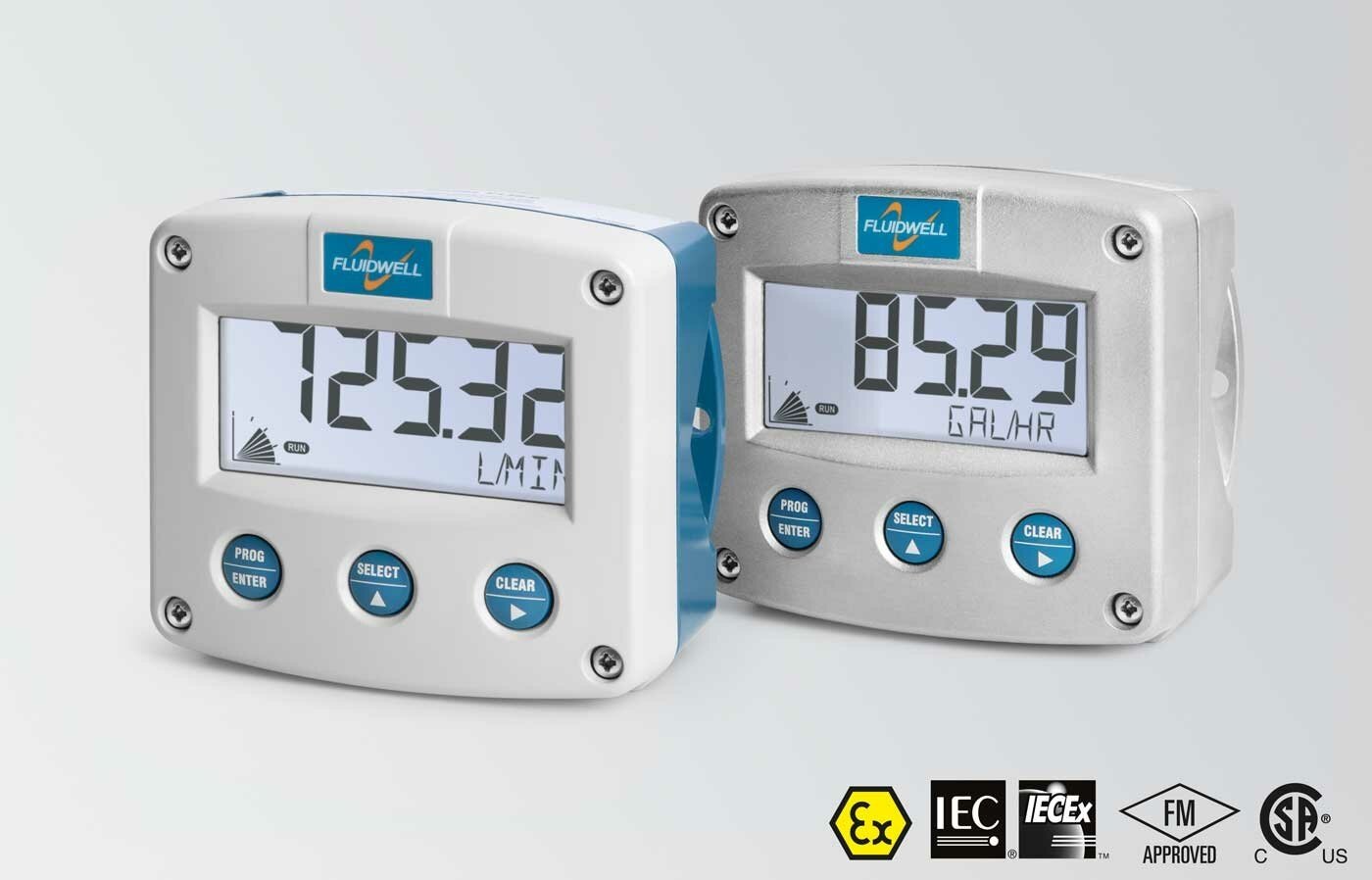

The F010 is a local indicator that shows the actual flow rate and has big, 26 mm (1") high digits. You can easily choose the measuring and time unit to be shown beneath the flow rate by using an alphanumeric setting menu. An easy-to-use and weatherproof solution that eliminates the need for sticky labels to be placed outside the enclosure! Without the use of trimmers or sensitive DIP switches, software functions are used to configure the number of decimals, Span, or K-factors.

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. 0 " 10V DC. |
Power Supply | Power Supply Long life Lithium battery. 4 " 20mA, input Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. |
- displays the time unit, measurement, and instantaneous flow rate.
- Extremely big flow rate digits measuring 26 mm (1").
- Engineering units for flow rate that can be chosen on-screen include mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P, or no unit at all. /sec, /min, /hour, or /day are the time units for flow rate.
- There are 5½ numbers indicating the flow rate.
- Ten segments indicate the piegraph.
- Backlight made of LEDs with intensity control.
- ATEX, IECEx, FM, and CSA C-US certified as intrinsically safe. GRP, aluminum, or premium stainless steel enclosure.
- automatic EEPROM memory backup of configurations.
- Simple setup with readable alphanumeric text.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
