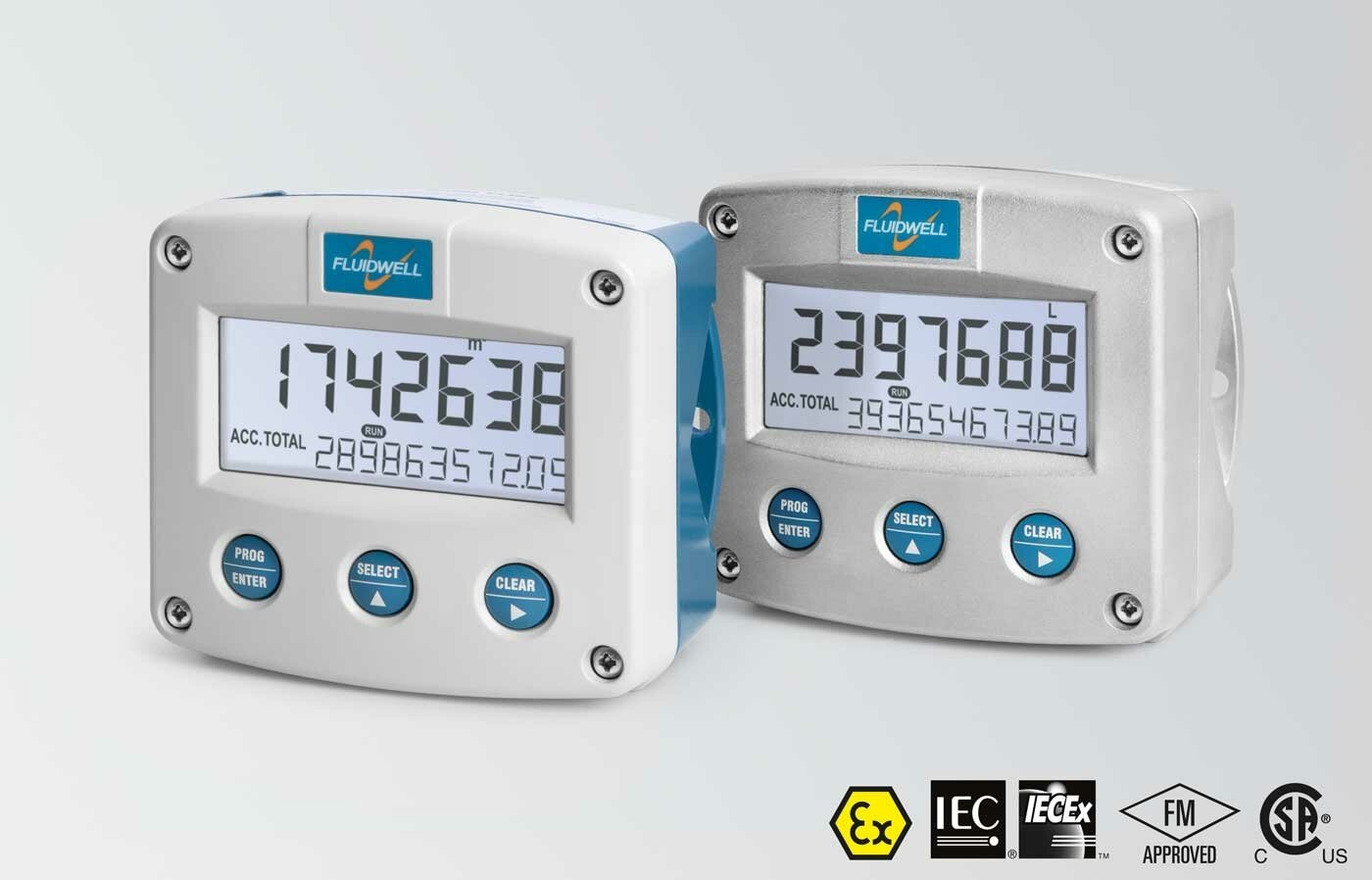

FLUIDWELL F011 Intrinsically safe - Totalizer | with resettable total and non-resettable accumulated total | Temperatures between -40°C up to +80°C (-40°F up to 176°F).
The running total and accumulated total are shown simultaneously by the F011 local indicator. Two presses of the CLEAR button will return the total to zero. Like the running total, the accumulated total can register up to 11 digits and is stored up in EEPROM memory once every minute. You just need to choose the desired measuring unit from an alphanumeric setup menu. An easy-to-use and weatherproof solution that eliminates the need for sticky labels to be placed outside the enclosure!

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. |
Power Supply | Long life Lithium battery. 4 " 20mA, input Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC. |
- shows both the total and the cumulative total at the same time.
- Total: seven resettable digits measuring 17 mm (0.67").
- Total accumulated: eleven 8mm (0.31") non-resetable digits.
- Engineering units for the total that can be chosen on the screen include kg, lb, bbl, GAL, USGAL, ml, L, and m³.
- Backlight made of LEDs with intensity control.
- EEPROM memory is used for automatic setting and running total backups.
- ATEX, IECEx, FM, and CSA C-US certified as intrinsically safe. GRP, aluminum, or premium stainless steel enclosure.
- Simple setup with readable alphanumeric text.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
