Name: FLUIDWELL F012 Intrinsically safe - Flow rate Indicator / Totalizer | Displays flow rate and total simultaneously | Input Signal (0)4 – 20mA | Temperatures between -40°C up to +80°C (-40°F up to 176°F).
Brand: FLUIDWELL
SKU: F012
Availability: OutOfStock

Part Number : F012

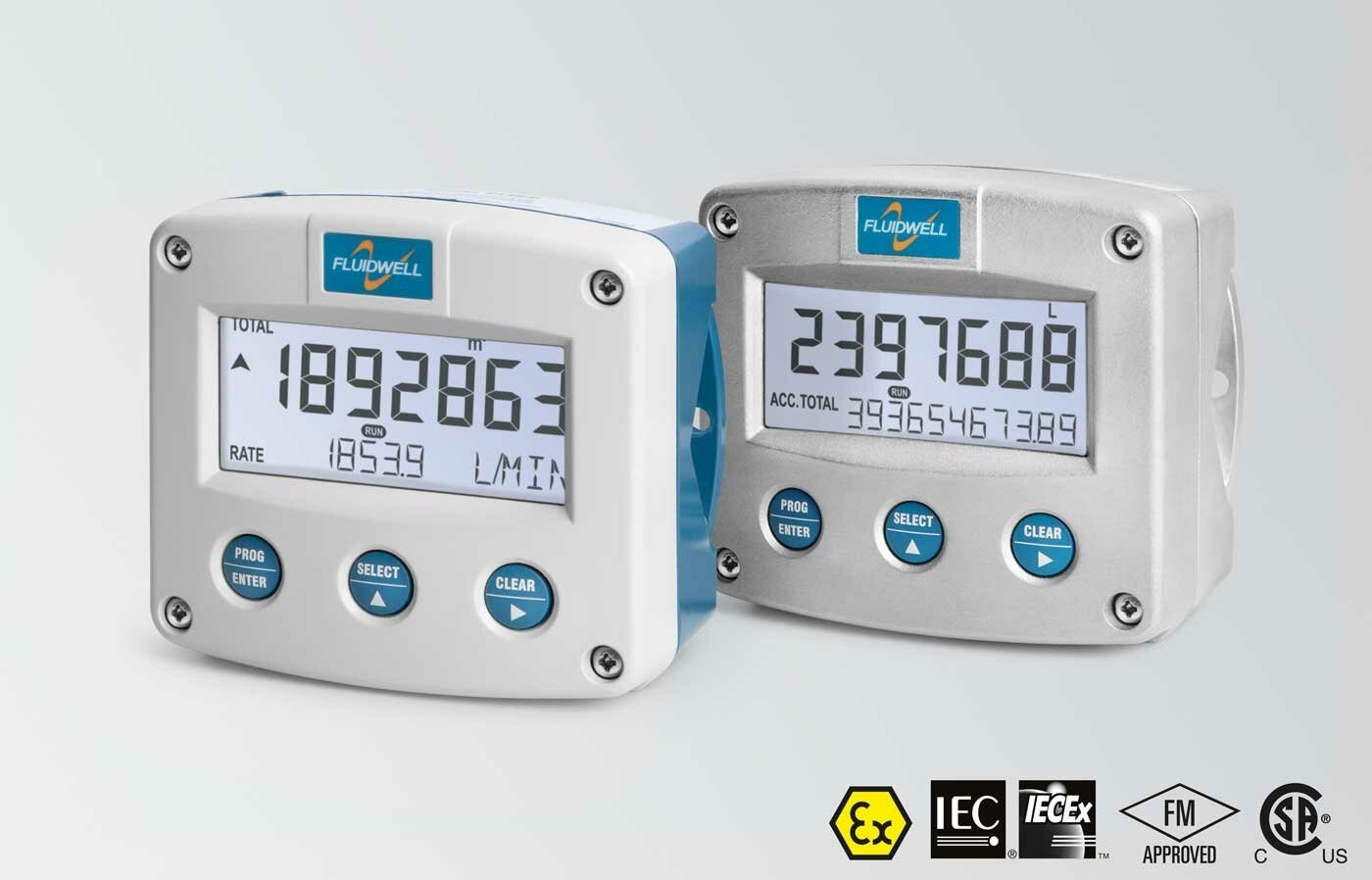

Our most popular model is the F012. The actual flow rate, total, and accumulated total are shown on this local indicator. Two presses of the CLEAR button will return the total to zero. Like the running total, the accumulated total can register up to 11 digits and is stored up in EEPROM memory once every minute.
From a wide assortment, on-screen engineering units are simple to configure.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA.
Power Supply	Long life Lithium battery. 4 " 20mA, input Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC.

simultaneously shows the total, the flow rate, and any additional accumulated total.
Large digit selection available for total or flow rate.
Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
Total: seven resettable digits measuring 17 mm (0.67").
Total accumulated: eleven 8mm (0.31") non-resetable digits.
distinct technical units for total and flow rate.
Engineering units for flow rate that can be chosen on-screen include mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P, or no unit at all. /sec, /min, /hour, or /day are the time units for flow rate.
Engineering units for the total that can be chosen on the screen include kg, lb, bbl, GAL, USGAL, ml, L, and m³.
Backlight made of LEDs with intensity control.
ATEX, IECEx, FM, and CSA C-US certified as intrinsically safe. GRP, aluminum, or premium stainless steel enclosure.
