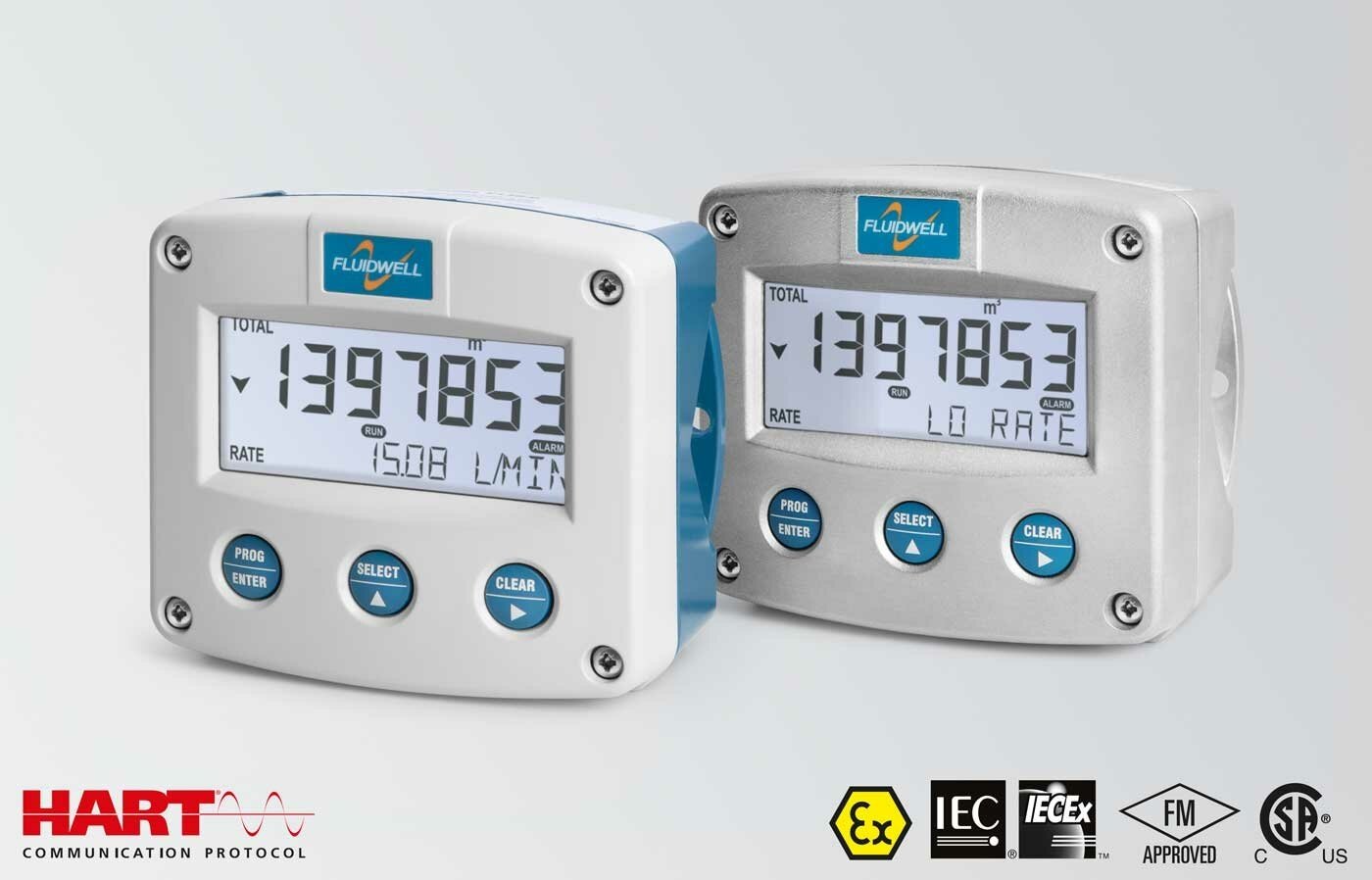

FLUIDWELL F018 Intrinsically safe - Flow rate Monitor / Totalizer | with linearization | pulse/alarm and analog outputs | HART communication
Featuring linearization and continuous flow rate monitoring, the F018 is a local indicator/transmitter. It shows the non-resettable accumulating total, resettable total, and real linearized flow rate. Globally, the F-Series is recognized for its assortment of easily navigable indications. It becomes even better with the F018. You may easily communicate with intelligent "DD enabled host" systems by using the HART communication protocol.

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Signal Inputs Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. |
Power Supply | Long life Lithium battery. 16 " 30V DC. Basic: 8 - 30V DC. Analog output loop powered. Sensor Supply : 1.2 / 3.2 or 8.2V DC. |
Flow rate, total, accumulated total, alarm values, and alarm messages are all displayed on the display.
Large digit selection available for total or flow rate.
clearly displays the alarm messages.
In the event of a flow rate alert, the red flashing LED illumination has adjustable intensity.
The flow curve was linearized at fifteen points using interpolation.
It is possible to enter the low and high flow rate alarm values.
Retransmission of pulses received from the source, for example, in order to amplify and square sinewave or coil signals or for calibration.
Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
Total: seven resettable digits measuring 17 mm (0.67").
Total accumulated: eleven 8mm (0.31") non-resetable digits.
distinct technical units for total and flow rate.
Scaled pulse output with the sum accumulated reflected in it.
In accordance with ATEX, IECEx, FM, and CSA C-US, intrinsic safety.
