FLUIDWELL F113 Intrinsically safe - Flow rate Monitor / Totalizer | with high / low alarms, analog and pulse outputs | Temperatures between -40°C up to +80°C (-40°F up to 176°F)

Name: FLUIDWELL F113 Intrinsically safe - Flow rate Monitor / Totalizer | with high / low alarms, analog and pulse outputs | Temperatures between -40°C up to +80°C (-40°F up to 176°F)
Brand: FLUIDWELL
SKU: F113
Availability: OutOfStock

Part Number : F113

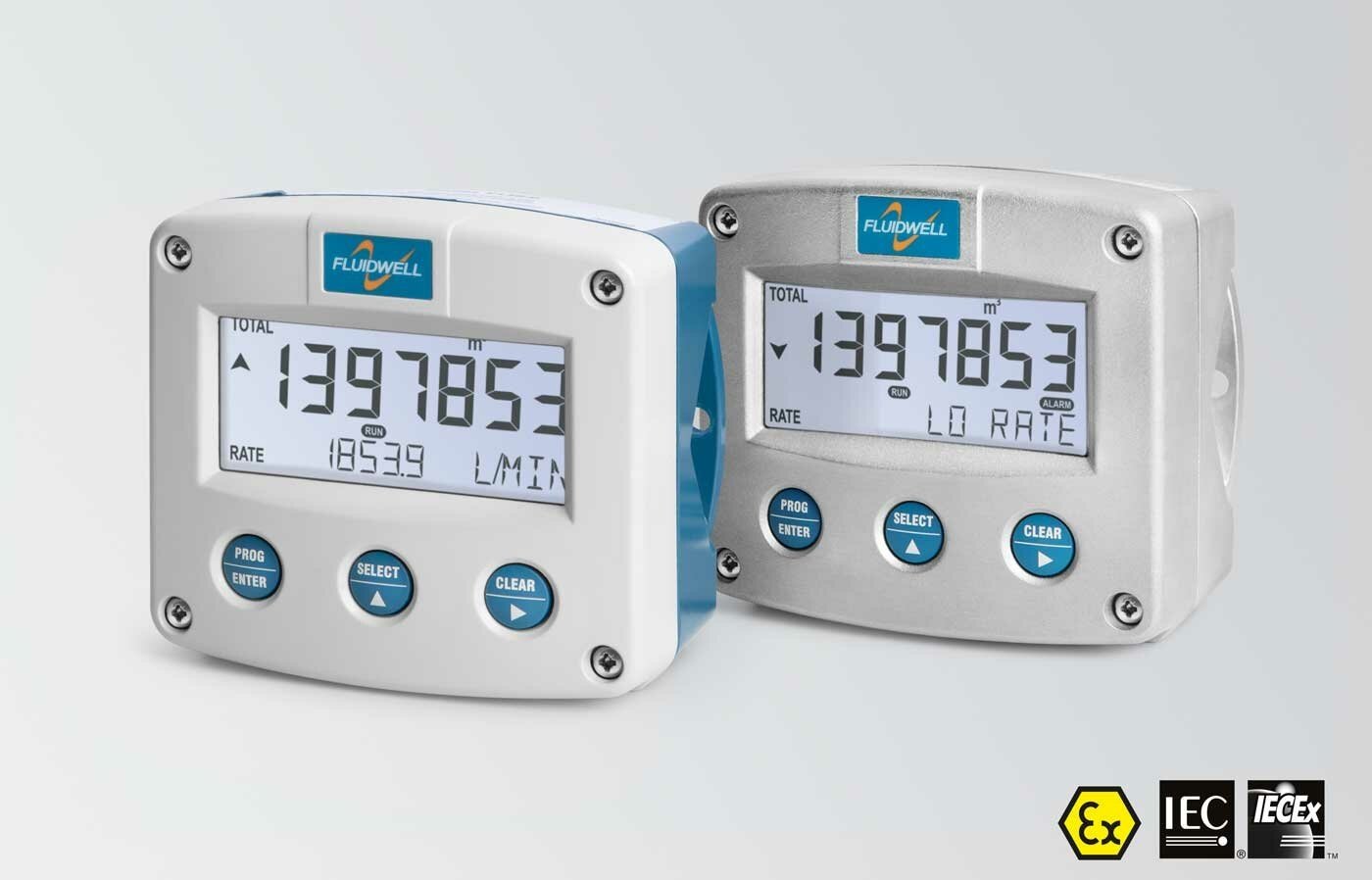

With continuous flow rate monitoring, the F113 is a multipurpose transmitter, totalizer, and flow rate indicator. It features two alert values for low flow rates and two for high flow rates. An alert ignore function can be configured to tolerate an inaccurate flow rate for a predetermined amount of time, if desired. There are five outputs that can be used to send the cumulative total, alert situations, and flow rate.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Flowmeter Inputs Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. Status Inputs Remote control: external reset for clearing total or to disable manual clearing by the keypad.
Power Supply	Long life Lithium battery. 4 " 20mA Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC.

Four alarm values—low-low, low, high, and high-high—can be set for flow rate monitoring.
The operator can alter the alarm values, or they can be password-protected.
For a predetermined amount of time, the alarm ignore function permits an inaccurate flow rate.
Pulse and analog outputs.
simultaneously shows the total, the flow rate, and any additional accumulated total.
Large digit selection available for total or flow rate.
Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
Total: seven resettable digits measuring 17 mm (0.67").
Total accumulated: eleven 8mm (0.31") non-resetable digits.
distinct engineering units on the display for the total and flow rate.
Four programmable alarm or scaled pulse outputs are possible.
clearly displays the alarm messages.
