FLUIDWELL F118 Intrinsically safe - Flow rate Monitor / Totalizer | with linearization | high / low alarms | analog and pulse outputs | Ambient temperature: -40°C to +80°C (-40°F to 176°F).

Name: FLUIDWELL F118 Intrinsically safe - Flow rate Monitor / Totalizer | with linearization | high / low alarms | analog and pulse outputs | Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Brand: FLUIDWELL
SKU: F118
Availability: OutOfStock

Part Number : F118

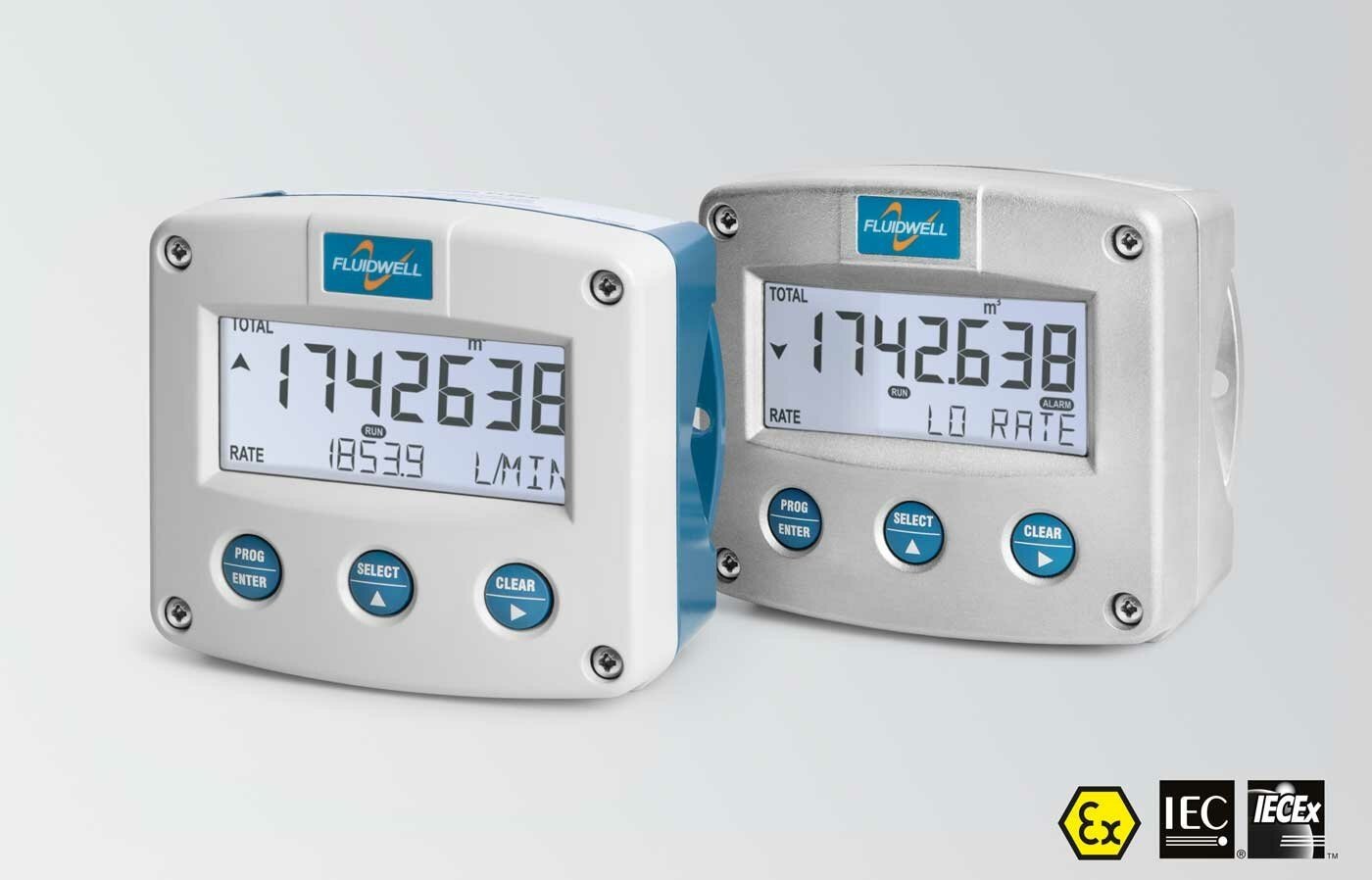

The F118 is a multifunctional transmitter, totalizer, and flow rate indicator that can accurately linearize the flowmeter signal. Ten linearization points with their frequencies or values can be specified in addition to the average K-Factor or Span. Even for very low frequency applications, the device will interpolate between these locations, significantly improving accuracy in any flow range. Additionally, a capability for continuous flow rate monitoring is included, complete with up to three alarm outputs and high and low flow rate alarm values.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Input	Signal Inputs Flowmeter Inputs Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
Power Supply	Long life Lithium battery. 4 " 20mA Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC.

The flow curve was linearized to ten points using interpolation.
Monitoring of flow rate: low and high flow rate alarms are two possible alarm settings.
The operator can alter the alarm values, or they can be password-protected.
Pulse and analog outputs.
The linearized flow rate, total, accumulated total, alarm values, alarm messages, and status are all displayed on the display.
Counting in seven 8mm (0.31") increments.
Total: seven resettable digits measuring 17 mm (0.67").
Total accumulated: eleven 8mm (0.31") non-resetable digits.
distinct engineering units on the display for the total and flow rate.
Three programmable alarm or scaled pulse outputs are possible.
clearly displays the alarm messages.
LED backlighting.
ATEX and IECEx certified as intrinsically safe. GRP, aluminum, or premium stainless steel enclosure.
