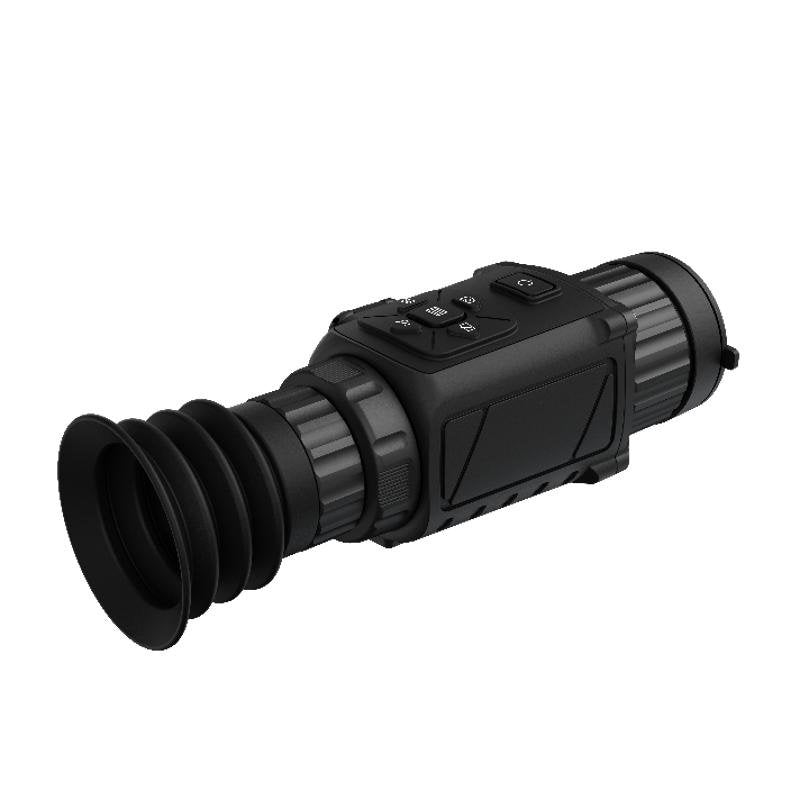

HIKMICRO Thermal Image Scope | THUNDER Pro TE19 | Max. Resolution 256 — 192
The 256 x 192 thermal detector and 1024 x 768 OLED panel on the HIKMICRO THUNDER Pro TE19 Thermal Image Scope deliver clear images even in challenging environmental circumstances like darkness, fog, smoke, dust, rain, snow, timber, and camouflage. The scope is mostly used in situations like patrols, hunting, etc.
- Specifications
- Features
- Downloads
| Detection | 900 m |
| Field of View (FOV) | 9.24° ƒ- 7.08° |
| Focal Length | 19 mm |
| Frame Rate | 25 Hz |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 ƒ- 192 (49,152 pixels) |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 12 1/4m |
| Response waveband | 8 1/4m to 14 1/4m |
| Spatial Resolution (IFOV) | 0.63 mrad |
- Advanced Imaging Sensor
- Long Detection Range
- High Image Quality
- Large OLED Display
- Optional Reticle Types
- Make zeroing easier
- Replaceable Batteries
- High Shock Resistance
- IP67 Waterproof Rated
