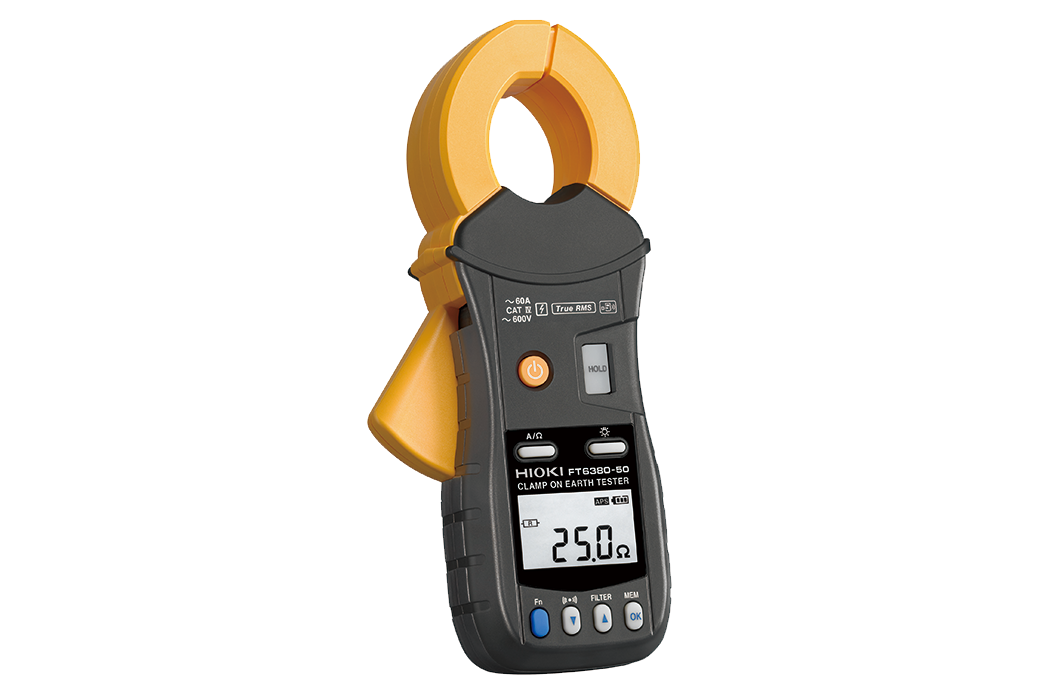

HIOKI CLAMP ON EARTH TESTER FT6380-50

Name: HIOKI CLAMP ON EARTH TESTER FT6380-50
Brand: Hioki
SKU: FT6380-50
Availability: OutOfStock

Part Number : FT6380-50

By clamping to numerous grounded ground wires, the FT6380-50 monitors grounding resistance. There is no need for an auxiliary grounding rod, and the ground wire does not need to be disconnected from the grounding rod. The low-profile, compact sensor can easily clamp ground wires and also provide AC current measurement functionality, measuring currents ranging from leakage currents on the order of a few mA to load currents of up to 60 A. Ground Resistance Tester with Super Slim Jaw and Easy Pole Clamp-On

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

AC Current range	20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: +/-2.0 % rdg. +/-0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Alarm	For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold.
Brand	Hioki
Display	LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec.
Earthing resistance range	0.20 © (0.01 © resolution) to 1600 © (20 © resolution), 10 ranges, Zero suppression: Less than 0.02 ©, Accuracy: +/-1.5 % rdg. +/-0.02 ©
IP PROTECTION RATING	IP40 (EN60529) With Jaws Closed
Maximum input current	100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency)
Maximum rated terminal-to-ground voltage	600 VAC measurement category IV (anticipated transient overvoltage 8000 V)
Memory Capacity	2000 data
Part number	FT6380-50
Power Supply	LR6 alkaline battery ƒ- 2

Multiple grounding can be easily checked with the clamps.
The instrument has two cores for voltage injection and current measurement.
Transfer data via Bluetooth® wireless communication
Easily transfer measurement data to an Excel® file
Instantly create reports by a free app (GENNECT Cross)
