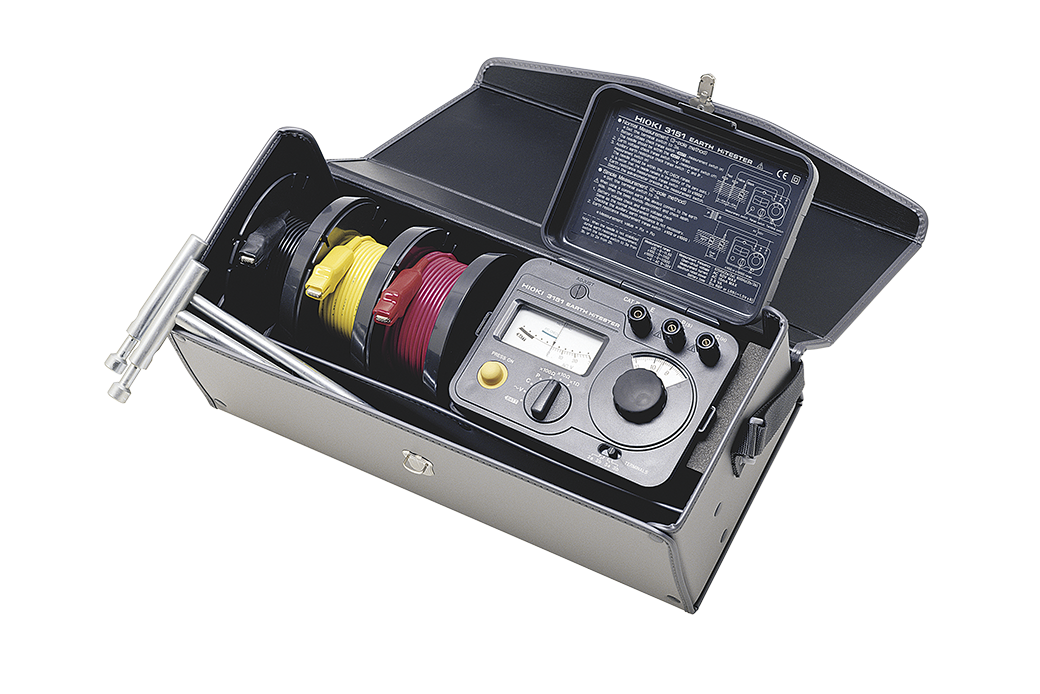

HIOKI EARTH HiTESTER 3151, Classic Ground Resistance Tester Using 3-Pole Method

Name: HIOKI EARTH HiTESTER 3151, Classic Ground Resistance Tester Using 3-Pole Method
Brand: Hioki
SKU: 3151
Availability: OutOfStock

Part Number : 3151

Electrical equipment must be earthed or grounded in order to ensure safety, protect lives, and prevent equipment damage. The 3151 ground resistance tester measures earthing resistance using an AC phase differential technique, ensuring that accurate measurements are unaffected by earth voltage and auxiliary earthing resistance.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Brand	Hioki
Measurement range	10 © (0 to 11.5 ©), 100 © (0 to 115 ©), 1000 © (0 to 1150 ©)
Part number	3151
Power Supply	R6P (AA) manganese battery ƒ-6 (Continuous use: 350 times), or LR6 (AA) alkaline battery ƒ-6 (Continuous use: 1100 times) (at 30 sec measurement/ 30 sec pause cycle)

Wide measurement range for 0 Ω to 1150 Ω, based on EN standard
Semi-dust-proof construction
Switchable measurement frequency to minimize the influence of harmonic earth voltage
