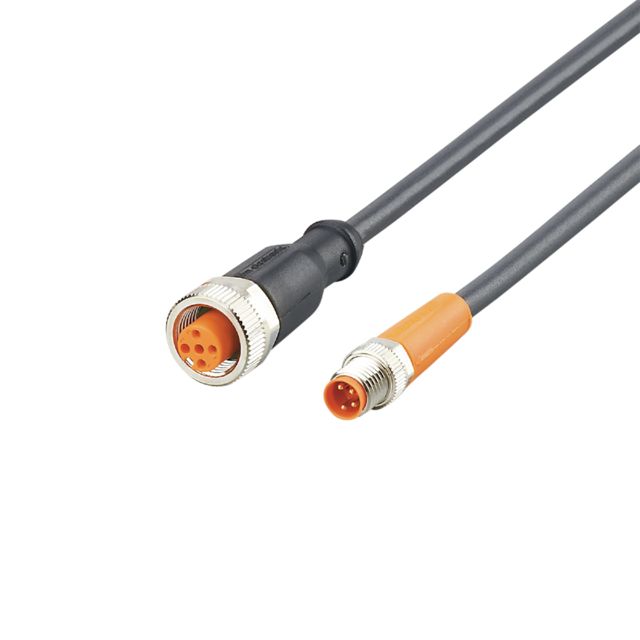

ifm EVC680, Straight Male 4 way M8 to Straight Female 5 way M12 Communication Cable, 300mm

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVC680, Straight Male 4 way M8 to Straight Female 5 way M12 Communication Cable, 300mm

Name: ifm EVC680, Straight Male 4 way M8 to Straight Female 5 way M12 Communication Cable, 300mm
Brand: ifm
SKU: EVC680
Availability: OutOfStock

Part Number : EVC680

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connection cable integrates seamlessly into existing systems, ensuring reliability even under challenging conditions owing to its superior build quality and thoughtful design. With features tailored for high resilience, such as drag chain suitability and exceptional protection ratings, it stands out as a dependable choice for users seeking performance without compromise. The connectivity options, including versatile M8 and M12 connectors, provide flexibility in installations, making it ideal for a wide range of industrial setups. Crafted with a focus on durability, it is not only easy to install but also guarantees long-lasting functionality, meeting the technical needs of modern applications.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
LED

Brand	ifm
Series	EVC
Number of Cores	4
Cross Sectional Area	0.34 mm²
Length	300mm
Sheath Colour	Black
Sheath Material	Polyurethane PUR
Connector 1 Number of Contacts	4
Connector 1	M8
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 2 Orientation	Straight
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Number of Contacts	5
