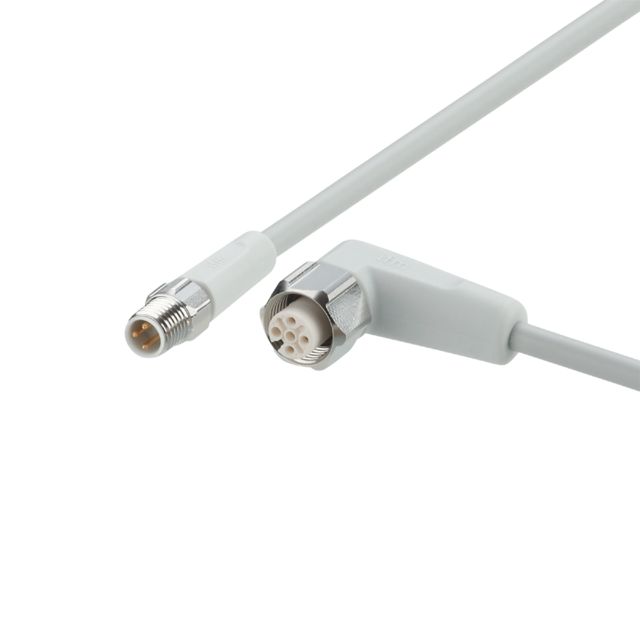

ifm EVF265, Straight Male 4 way M8 to Right Angle Female 5 way M12 Communication Cable, 300mm

Name: ifm EVF265, Straight Male 4 way M8 to Right Angle Female 5 way M12 Communication Cable, 300mm
Brand: ifm
SKU: EVF265
Availability: InStock

Part Number : EVF265

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic innovative connection cable is designed specifically for use in demanding applications within the food industry. Engineered to operate reliably in hygienic and wet conditions, it features a unique combination of materials that ensure safety and durability. With robust protection classes and a wide ambient temperature range, this product is ideal for environments that require both flexibility and resilience. The cable’s thoughtful design includes gold-plated contacts and a silicone-free construction, making it suitable for sensitive applications. Coupled with its drag chain suitability and impressive bending capabilities, this connection cable guarantees superior performance even under rigorous conditions.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVF
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Material	Modified Polyphenylene Ether MPPE
Length	300mm
Sheath Colour	Grey
Connector 1	M8
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 2 Number of Contacts	5
Connector 2 Gender	Female
Connector 2 Orientation	Right Angle
Connector 2	M12
