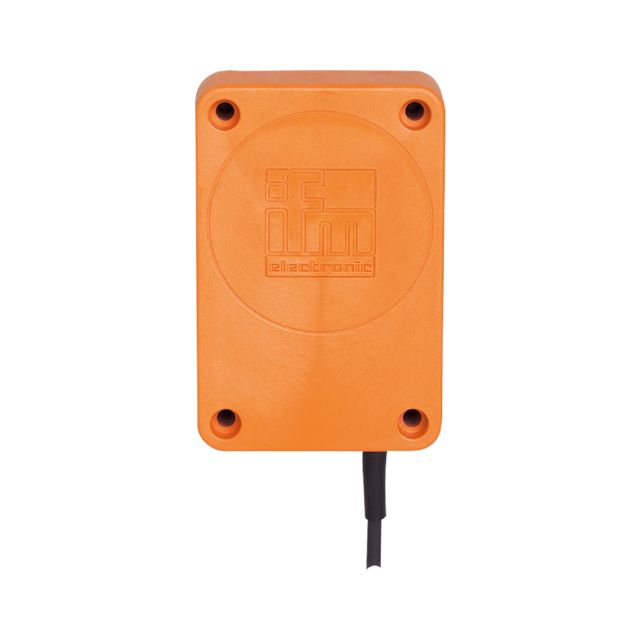

ifm ID0014 | Inductive Proximity Sensor | 50 mm, Pre-Cabled
Part Number : ID0014
The ifm ID0014 is an inductive proximity sensor with detection range 50 mm, supply voltage 20 → 250 V ac/dc, 20 → 250 V ac/dc and IP65 protection.
- Sensor Technology: Inductive
- Detection Range: 50 mm
- Body Style: Rectangular
- Output Function: NO
- Connection Type: Pre-Cabled
- Cable Length: 2m
- Supply Voltage: 20 → 250 V ac/dc, 20 → 250 V ac/dc
- IP Rating: IP65
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The ifm electronic inductive sensor is designed for precision and reliability in sensing applications, featuring a robust rectangular housing that ensures durability in various environments. Engineered to sense metallic objects within a 50mm range, it is ideal for machine automation, robotics, and any system requiring accurate proximity detection. With an operating temperature range from -25°C to 80°C, this sensor maintains exceptional performance across diverse conditions. The thoughtfully constructed design incorporates minimal load current requirements while expertly managing leakage currents, making it an efficient choice for modern industrial demands. Its IP65 protection rating confirms that it can withstand dust and low-pressure water jets, increasing its versatility in challenging settings.
Very long sensing range
Easy setting of the sensing range via potentiometer
Large active sensor face
With combined AC/DC output and two-wire technology
Robust housing for use in harsh industrial environments
Easy setting of the sensing range via potentiometer
Large active sensor face
With combined AC/DC output and two-wire technology
Robust housing for use in harsh industrial environments
| Brand | ifm |
| Series | ID0 |
| Sensor Technology | Inductive |
| Body Style | Rectangular |
| Detection Range | 50 mm (1.97 in) |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Supply Voltage | 20 → 250 V ac/dc, 20 → 250 V ac/dc |
| Length | 120 mm (4.72 in) |
| IP Rating | IP65 |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Switching Current | 100 mA |
| Switching Frequency | 35 Hz |
| Cable Length | 2 m (6.56 ft) |
