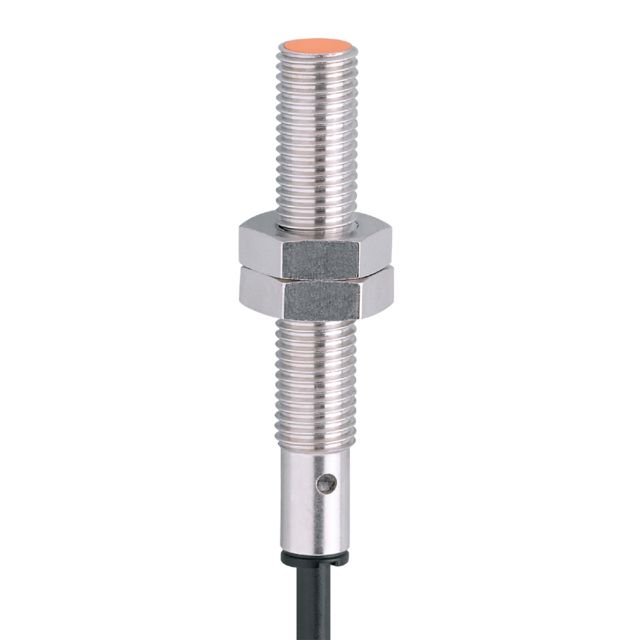

ifm IE5229, Inductive Threaded Barrel Proximity Sensor, M8, 1 mm Detection, PNP/NPN NO/NC, 5 → 36 V dc

Name: ifm IE5229, Inductive Threaded Barrel Proximity Sensor, M8, 1 mm Detection, PNP/NPN NO/NC, 5 → 36 V dc
Brand: ifm
SKU: IE5229
Availability: OutOfStock

Part Number : IE5229

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is engineered for precision and reliability in detecting metallic objects. Offering a robust design, it excels in applications where space is constrained while maintaining the highest standards in performance. The threaded housing allows for easy integration into various systems, guaranteeing optimal installation flexibility. With a sensing range and operating distance tailored to meet the demands of industrial environments, this sensor operates seamlessly across a wide temperature range. Its intelligent design includes features such as multiple output functions and comprehensive protection mechanisms, ensuring durability and longevity even in the most challenging conditions.

For use where space is restricted
Robust metal housing for use in harsh industrial environments
Very high switching frequency
Two-wire technology
Output function normally open or normally closed programmable

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	1 mm
Body Style	Threaded Barrel
Output Function	NO/NC
Digital Switching Output Type	PNP/NPN
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	5 → 36 V dc
Length	50mm
IP Rating	IP67
Mounting Type	Flush
Shielding	Shielded
Series	IE5
Switching Current	200 mA
Switching Frequency	2 kHz
