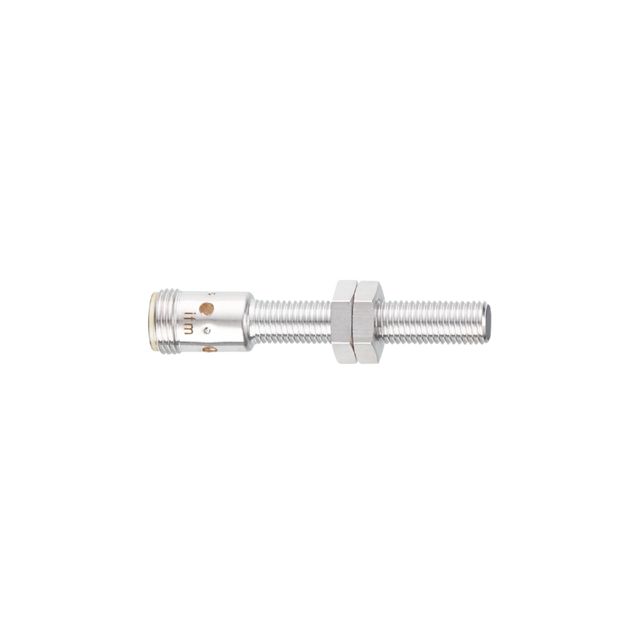

ifm IE5257 | Inductive Proximity Sensor | 2 mm, 10 → 30 V dc

Name: ifm IE5257 | Inductive Proximity Sensor | 2 mm, 10 → 30 V dc
Brand: ifm
SKU: IE5257
Availability: InStock

Part Number : IE5257

The ifm IE5257 is an inductive proximity sensor with detection range 2 mm, supply voltage 10 → 30 V dc and IP67 protection.

Thread Size: M8
Sensor Technology: Inductive
Detection Range: 2 mm
Body Style: Threaded Barrel
Digital Switching Output Type: PNP
Output Function: NO
Connection Type: M12
Supply Voltage: 10 → 30 V dc

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed for precision and reliability in various industrial applications. With a robust construction featuring a threaded housing, it ensures optimal performance even in challenging environments. Its increased sensing range and high protection class make it ideal for a wide range of uses, from automated machinery to safety equipment. Engineered with advanced electrical data, the sensor operates effectively across a diverse spectrum of operating conditions. The installation process is straightforward, allowing for quick deployment, while the embedded software enhances its functionality and adaptability.

For use where space is restricted
Robust metal housing for use in harsh industrial environments
Long sensing range for high uptime
Very high switching frequency
Clearly visible indication of the switching status

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	60mm
Mounting Type	Flush
Switching Frequency	1 kHz
Switching Current	100 mA
Series	IE5
Shielding	Shielded
