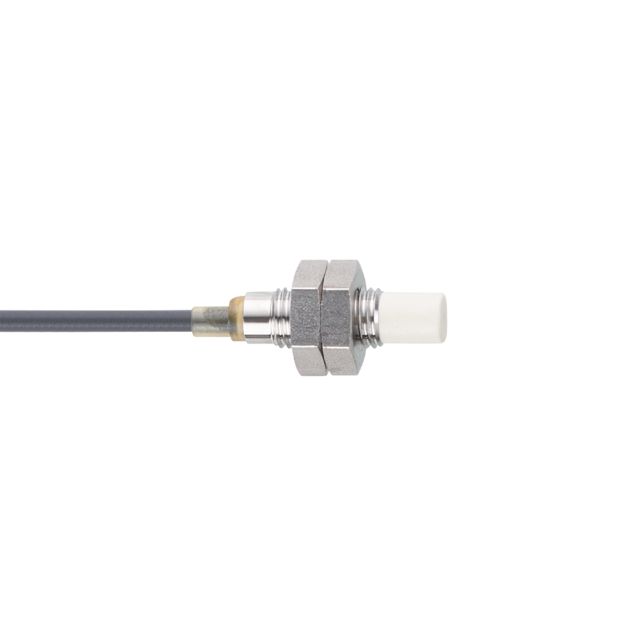

ifm IES247 | Inductive Proximity Sensor | 6 mm, 10 → 30 V dc

Name: ifm IES247 | Inductive Proximity Sensor | 6 mm, 10 → 30 V dc
Brand: ifm
SKU: IES247
Availability: InStock

Part Number : IES247

The ifm IES247 is an inductive proximity sensor with detection range 6 mm, supply voltage 10 → 30 V dc and IP65, IP66, IP67, IP68, IP69K protection.

Thread Size: M8
Sensor Technology: Inductive
Body Style: Threaded Barrel
Detection Range: 6 mm
Output Function: NO
Cable Length: 2m
Connection Type: Pre-Cabled
Supply Voltage: 10 → 30 V dc

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor represents a fusion of precision and reliability, crafted for diverse industrial applications. Engineered to excel in mobile and harsh environments, this sensor is an invaluable component for factory automation. With a sensing range of 6 mm, it effectively detects metallic objects while ensuring minimal delay and high accuracy. The robust design, featuring stainless steel construction, promises durability and resistance to corrosion, making it suitable for cooling and lubricating applications. Moreover, its IP65 to IP69K protection class guarantees outstanding performance in challenging conditions, while comprehensive testing against international standards reassures you of its reliability. This sensor is not just a tool

it's an essential asset for enhancing operational efficiency and safety in any industrial setting.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	27.5mm
Mounting Type	Non-Flush
Shielding	Unshielded
Series	IES
Switching Current	100 mA
Switching Frequency	800 Hz
