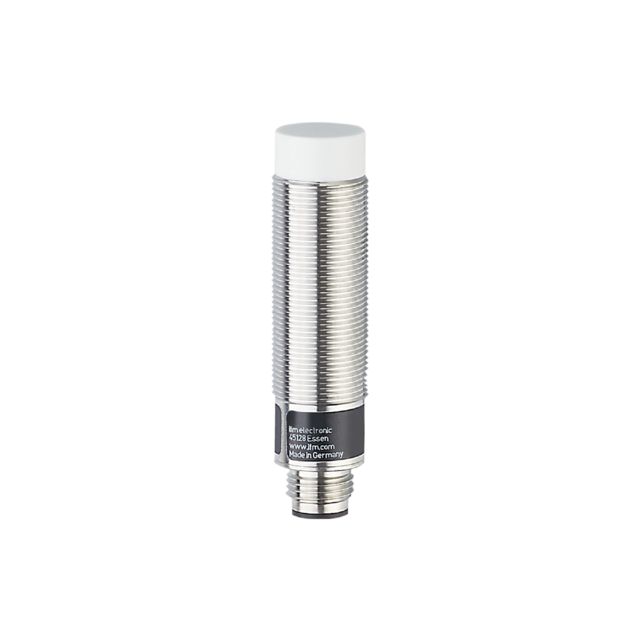

ifm IG0345, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 250 V

Name: ifm IG0345, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 250 V
Brand: ifm
SKU: IG0345
Availability: OutOfStock

Part Number : IG0345

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed for demanding applications requiring high reliability and precision. Featuring a robust threaded housing, this unit is ideal for various industrial environments. With a sensing range of 12 mm, it excels in detecting metallic objects, thanks to its heightened accuracy and performance. The product operates over a wide voltage range, accommodating both AC and DC supply, making it versatile for different setups. Built to withstand challenging conditions, it boasts an ambient temperature range from -25 to 70°C and an IP67 rating for dust and water resistance, ensuring longevity and durability. The intuitive LED indicator simplifies monitoring, while the compact design allows for easy integration into existing systems. Experience efficiency and reliability with this state-of-the-art sensor.

With combined AC/DC output and two-wire technology
Long sensing range for high uptime
Wide operating temperature range
Robust metal housing for use in harsh industrial environments
With robust 1/2 connector

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	12 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	1/2"20 UNF
Supply Voltage	20 → 250 V
IP Rating	IP67
Length	72mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	90 Hz
Switching Current	100 mA
Series	IG0
