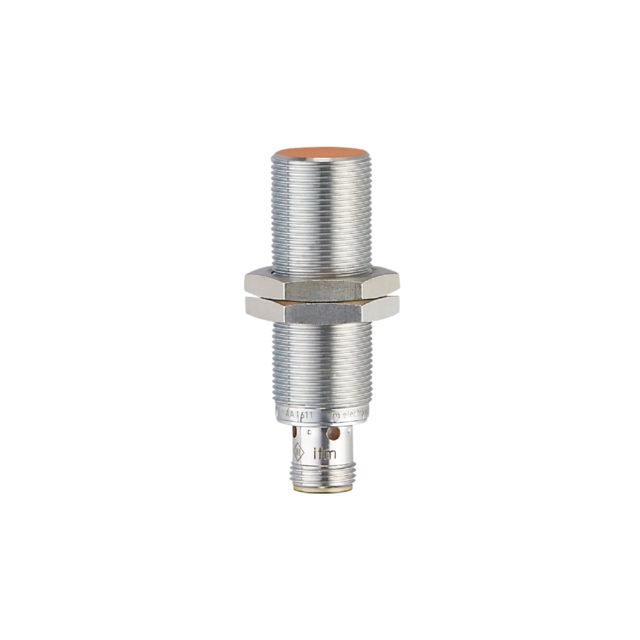

ifm IG6214 | Inductive Proximity Sensor | 1.4 → 7 mm, NO/NC

Name: ifm IG6214 | Inductive Proximity Sensor | 1.4 → 7 mm, NO/NC
Brand: ifm
SKU: IG6214
Availability: InStock

Part Number : IG6214

The ifm IG6214 is an inductive proximity sensor with detection range 1.4 → 7 mm, output function NO/NC and supply voltage 10 → 30 V dc.

Thread Size: M18
Sensor Technology: Inductive
Body Style: Threaded Barrel
Detection Range: 1.4 → 7 mm
Output Function: NO/NC
Digital Switching Output Type: PNP/NPN
Connection Type: M12
Supply Voltage: 10 → 30 V dc

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered to offer precise detection and versatility in applications requiring reliable monitoring. Designed with IO-Link technology, the sensor ensures seamless communication and configurability, allowing users to adapt to various operational needs. With a robust construction, this sensor excels in harsh environments, maintaining high performance across a wide temperature range. Its threaded type housing and compact dimensions facilitate effortless integration into existing setups. Whether you're in manufacturing, automation, or process control, this sensor stands out as a dependable solution for enhancing operational efficiency and productivity.

For a precise position monitoring on machines
Flexible use thanks to large operating temperature range
Very high repeatability
Reliable transmission of the distance as linearized process value via IO-Link
Normally closed or normally open and PNP/NPN adjustable via IO-Link

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	1.4 → 7 mm
Output Function	NO/NC
Digital Switching Output Type	PNP/NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	60mm
Mounting Type	Flush
Series	IG6
Communication Protocol	IO-LINK
Switching Frequency	300 Hz
Switching Current	100 mA
Shielding	Shielded
