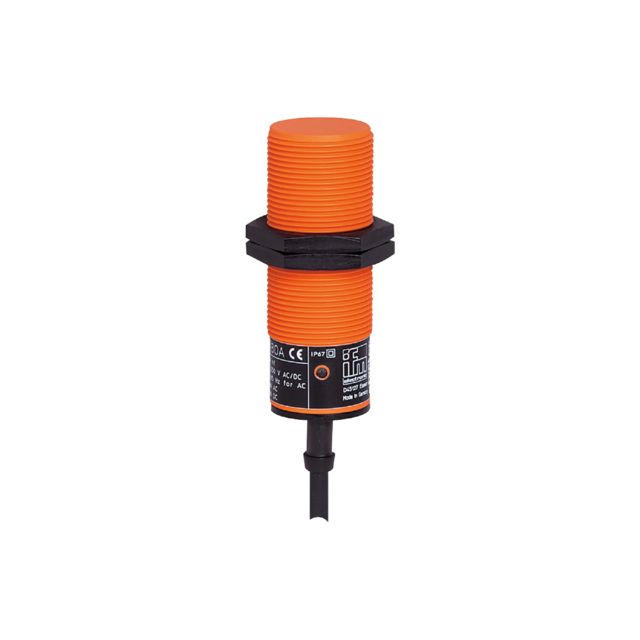

ifm II5300 | Inductive Proximity Sensor | 15 mm, 10 → 36 V dc
Part Number : II5300
The ifm II5300 is an inductive proximity sensor with detection range 15 mm, supply voltage 10 → 36 V dc and IP67 protection.
- Thread Size: M30
- Sensor Technology: Inductive
- Detection Range: 15 mm
- Body Style: Threaded Barrel
- Output Function: NO
- Digital Switching Output Type: PNP
- Connection Type: Pre-Cabled
- Cable Length: 2m
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The ifm electronic inductive sensor represents a superior choice for precise detection in various industrial applications. Designed to excel under rigorous conditions, this sensor boasts a robust construction that is suitable for non-flush mount installations. With a sensing range up to 15 mm and exceptional environmental resilience, it ensures consistent performance in temperatures ranging from -25°C to 80°C. The integrated reverse polarity and short-circuit protections provide additional reliability, safeguarding the unit against potential risks. Its intricate engineering adheres to rigorous EMC standards, making it a dependable option for modern automation needs.
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
For a precise position detection on machines
High protection rating for the requirements of harsh industrial environments
For a precise position detection on machines
| Brand | ifm |
| Series | II5 |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 15 mm (0.591 in) |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 36 V dc |
| Length | 81 mm (3.19 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Thread Size | M30 |
| Switching Current | 250 mA |
| Switching Frequency | 250 Hz |
| Cable Length | 2 m (6.56 ft) |
