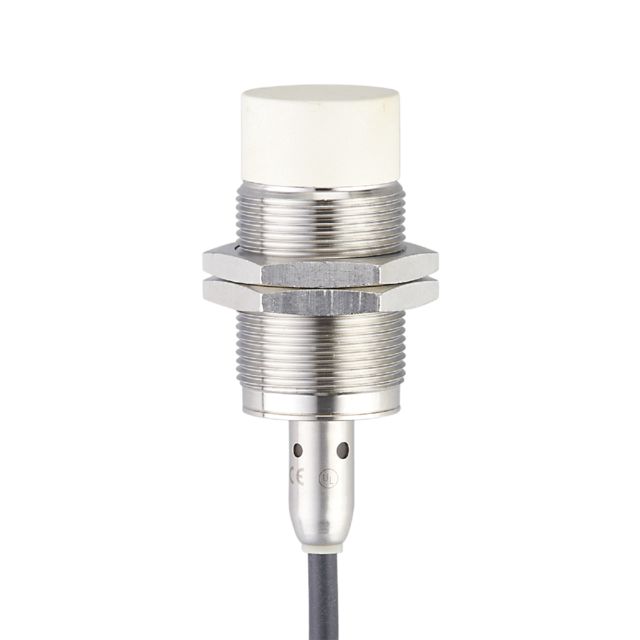

ifm IIM211, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NO, 10 → 60 V dc

Name: ifm IIM211, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NO, 10 → 60 V dc
Brand: ifm
SKU: IIM211
Availability: OutOfStock

Part Number : IIM211

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Sensor represents a cutting edge solution for detection needs in challenging environments. Designed for mobile and harsh applications, this sensor stands out with its increased sensing range and robust construction, capable of operating under extreme temperatures from -40 to 85 degrees Celsius. Featuring a threaded type housing, it ensures a secure fit while the reliable PNP output function and short circuit protection guarantee performance consistency.

E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
Wide operating temperature range
High ingress protection for the requirements of harsh environmental conditions
High EMC resistance according to automotive standards
Large operating voltage range

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	22 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	6m
Supply Voltage	10 → 60 V dc
IP Rating	IP67, IP69K
Length	81mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	100 Hz
Series	IIM
Switching Current	200 mA
