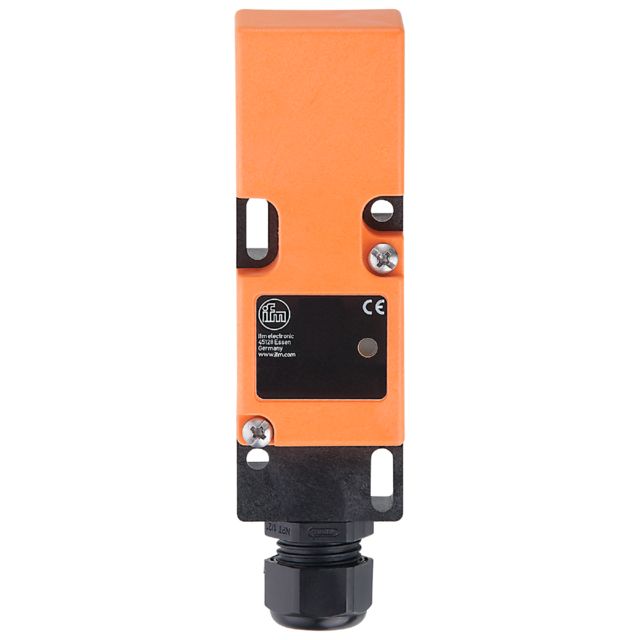

ifm IM5020, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO/NC, 10 → 36 V dc

Name: ifm IM5020, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO/NC, 10 → 36 V dc
Brand: ifm
SKU: IM5020
Availability: OutOfStock

Part Number : IM5020

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed for precision in various applications, offering a reliable solution for detecting metallic objects. With its robust rectangular housing, it provides compatibility for flush mounting in diverse settings, ensuring seamless integration with existing systems. Engineered for versatility, the sensor operates effectively within a substantial sensing range while being capable of selecting between normally open and normally closed output functions. Its high tolerance for ambient temperature variations makes it suitable for tough environments, allowing you to count on its performance regardless of the conditions. The combination of advanced electrical design and protective features delivers consistently high performance, making this sensor an essential component for automation and control processes.

Long sensing range for use in conveying
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Rectangular
Digital Switching Output Type	PNP
Output Function	NO/NC
Connection Type	Screw Terminal
Supply Voltage	10 → 36 V dc
Length	40mm
IP Rating	IP65
Mounting Type	Flush
Switching Current	250 mA
Shielding	Shielded
Series	IM5
Switching Frequency	250 Hz
