ifm IM5037, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc

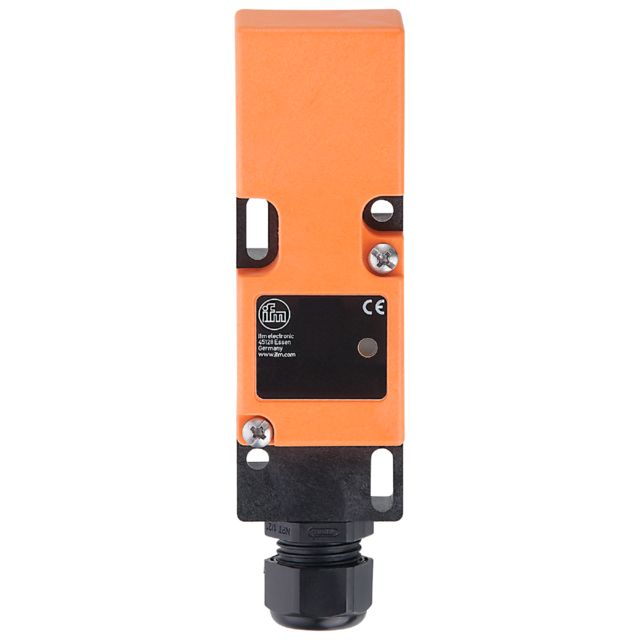

Name: ifm IM5037, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc
Brand: ifm
SKU: IM5037
Availability: OutOfStock

Part Number : IM5037

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is engineered for precision and reliability in diverse industrial applications. Designed with versatility in mind, it features selectable output functions that allow for adaptable integration into various systems. Its robust housing ensures durability, while the compact dimensions enable convenient installation, even in space restricted environments. The sensor's extended sensing range and environmental protection rating enhance its functionality, making it suitable for a wide range of tasks under challenging conditions.

Long sensing range for use in conveying
Output function normally open or normally closed programmable
Two-wire technology
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	15 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M20
Supply Voltage	10 → 55 V dc
IP Rating	IP65
Length	120mm
Mounting Type	Flush
Switching Current	400 mA
Series	IM
Switching Frequency	250 Hz
Shielding	Shielded

ifm IM5037, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc
