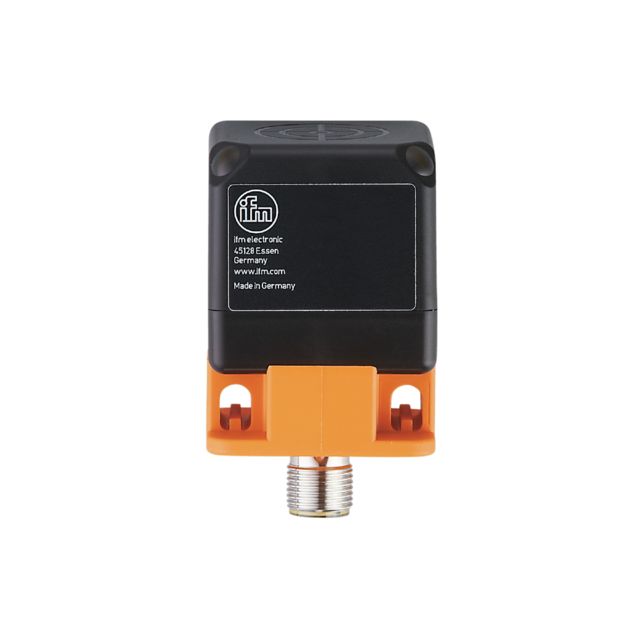

Name: ifm IM5139, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 15 → 30 V dc
Brand: ifm
SKU: IM5139
Availability: OutOfStock

ifm IM5139, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 15 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IM5139, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP/NPN NO/NC, 15 → 30 V dc

Part Number : IM5139

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive analogue sensor revolutionises sensor technology with its exceptional performance and versatility. Designed for applications requiring precise distance measurement, this remarkable device employs cutting edge IO-Link communication for seamless integration into modern automation systems. Its robust rectangular housing not only ensures durability but also facilitates easy installation in varied operational environments, including challenging ones with temperatures ranging from -25 to 80 degrees Celsius. With an impressive detection zone and advanced protection features, this sensor ensures reliable operation while maintaining high accuracy.

Non-contact measurement of distances up to 15 mm
Precise linearized current output
Wide operating temperature range
High repeatability
LED display to check working range and operation

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	15 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M12
Supply Voltage	15 → 30 V dc
IP Rating	IP67
Length	54mm
Mounting Type	Flush
Shielding	Shielded
Switching Current	100 mA
Communication Protocol	IO-LINK
Switching Frequency	100 Hz
Series	IM
