ifm IM5141, Inductive Rectangular Proximity Sensor, 1 → 26 mm Detection, PNP/NPN NO/NC, 15 → 30 V dc

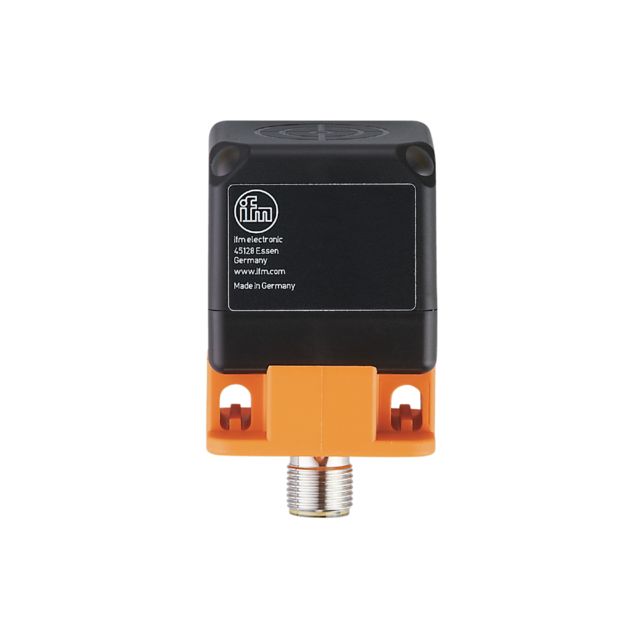

Name: ifm IM5141, Inductive Rectangular Proximity Sensor, 1 → 26 mm Detection, PNP/NPN NO/NC, 15 → 30 V dc
Brand: ifm
SKU: IM5141
Availability: OutOfStock

Part Number : IM5141

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive analogue sensor with IO-Link is designed to deliver precise measurements and reliable performance for industrial applications. Featuring a robust rectangular housing, it is built to withstand challenging environments with an impressive protection rating of IP67. The sensor offers parameterisable output functions and supports various communication interfaces, making it highly versatile. With a linear analogue current output and a wide measuring range, it is ideal for detecting metallic targets. Its compact dimensions ensure ease of installation, while the integral LED indicators provide clear operational feedback. The innovative design also incorporates extensive overload protection, ensuring the longevity and reliability of the sensor in demanding scenarios.

Non-contact measurement of distances up to 26 mm
Precise linearised current output
Wide operating temperature range
High repeatability
LED display to check working range and operation

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	1 → 26 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M12
Supply Voltage	15 → 30 V dc
Length	40mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Frequency	100 Hz
Switching Current	100 mA
Communication Protocol	IO-LINK
Series	IM5
Shielding	Unshielded
