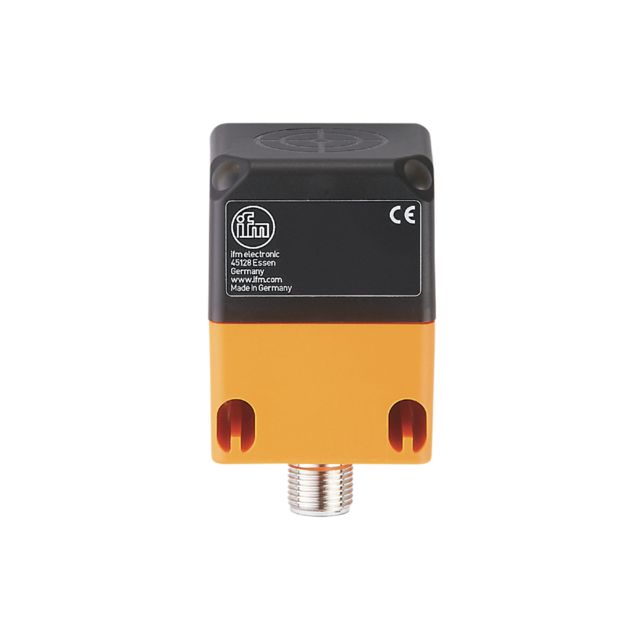

ifm IM5175 | Inductive Proximity Sensor | 3 → 35 mm, NO/NC
Part Number : IM5175
The ifm IM5175 is an inductive proximity sensor with detection range 3 → 35 mm, output function NO/NC and supply voltage 15 → 30 V dc.
- Sensor Technology: Inductive
- Detection Range: 3 → 35 mm
- Body Style: Rectangular
- Output Function: NO/NC
- Digital Switching Output Type: PNP/NPN
- Connection Type: M12
- Supply Voltage: 15 → 30 V dc
- IP Rating: IP67
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The ifm electronic Inductive analogue sensor with IO-Link is designed for precise non contact sensing in a variety of applications. This high performance device features advanced communication capabilities, specifically tailored for enhanced detection and measurement functions. With its compact rectangular housing, it fits seamlessly in various environments while offering robust performance. The sensor's wide operating voltage range and low current consumption make it particularly versatile and energy-efficient.
Non-contact measurement of distances up to 26 mm
Precise linearized current output
Wide operating temperature range
High repeatability
LED display to check working range and operation
Precise linearized current output
Wide operating temperature range
High repeatability
LED display to check working range and operation
| Brand | ifm |
| Series | IM |
| Sensor Technology | Inductive |
| Body Style | Rectangular |
| Detection Range | 3 → 35 mm (0.118 to 1.38 in) |
| Output Function | NO/NC |
| Connection Type | M12 |
| Supply Voltage | 15 → 30 V dc |
| Length | 54 mm (2.13 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP/NPN |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Communication Protocol | IO-LINK |
