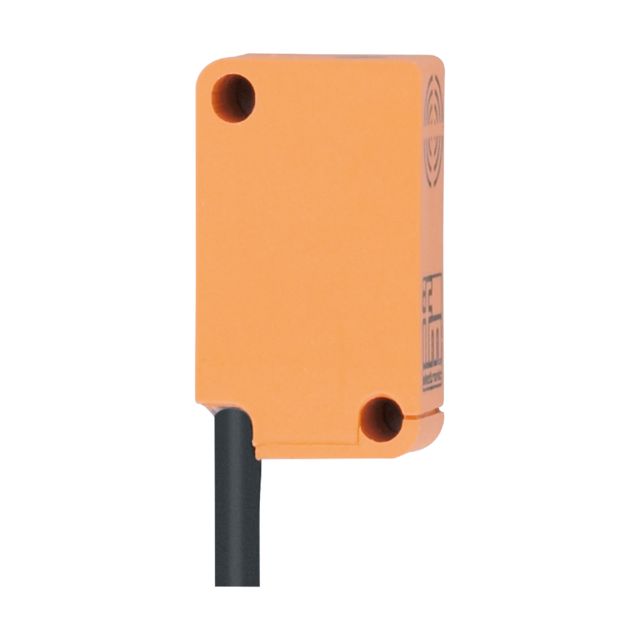

Name: ifm IS5002, Inductive Rectangular Proximity Sensor, 2 mm Detection, PNP NC, 10 → 30 V dc
Brand: ifm
SKU: IS5002
Availability: OutOfStock

ifm IS5002, Inductive Rectangular Proximity Sensor, 2 mm Detection, PNP NC, 10 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IS5002, Inductive Rectangular Proximity Sensor, 2 mm Detection, PNP NC, 10 → 30 V dc

Part Number : IS5002

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor has been expertly engineered to deliver exceptional performance in various industrial applications. Designed for reliability and precision, it features a robust rectangular housing that ensures durability even in challenging environments. The sensor operates across a range of -25 to 80 °C, making it suitable for diverse operating conditions. Its sophisticated detection mechanics provide an impressive sensing range with minimal deviation, thus ensuring accuracy in measurements. Integrated protections against reverse polarity, overload, and short-circuits bolster its reliability, while its IP67-rated enclosure guarantees resilience against dust and moisture. This is an ideal solution for users seeking an efficient and dependable sensing device that aligns with the highest standards of safety and operational excellence.

Particularly space-saving rectangular housing
For use where space is restricted
Very high switching frequency
Wide operating temperature range
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	2 mm
Output Function	NC
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	28mm
IP Rating	IP67
Mounting Type	Flush
Switching Frequency	800 Hz
Series	IS5
Shielding	Shielded
Switching Current	200 mA
