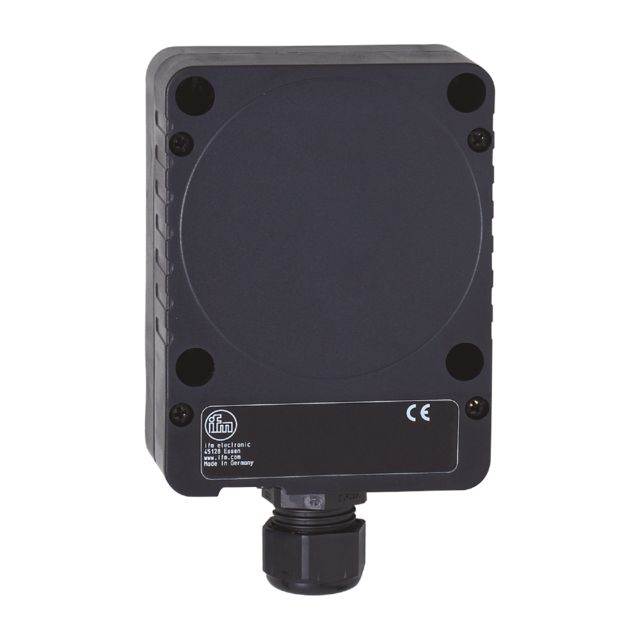

ifm KD501A | Capacitive Proximity Sensor | 60 mm, NO/NC
Part Number : KD501A
The ifm KD501A is a capacitive proximity sensor with detection range 60 mm, output function NO/NC and supply voltage 10 → 36 V dc.
- Sensor Technology: Capacitive
- Detection Range: 60 mm
- Body Style: Rectangular
- Digital Switching Output Type: PNP
- Output Function: NO/NC
- Connection Type: Screw Terminal
- Supply Voltage: 10 → 36 V dc
- IP Rating: IP65
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The ifm electronic capacitive sensor offers advanced non-contact sensing with exceptional versatility. Its compact rectangular housing ensures easy installation, while its flexible output functions (normally open or closed) and wide operating voltage range support diverse systems. With a sensing range of up to 60mm and built-in adjustment capabilities, it reliably detects various materials and performs across a broad temperature range. The sensor is designed for durability in harsh environments, providing long-lasting, precise performance.
Easy setting of the sensing range via potentiometer
For applications in hazardous areas
Robust housing for use in harsh industrial environments
Output function normally open or normally closed programmable
Long sensing range of 60 mm
For applications in hazardous areas
Robust housing for use in harsh industrial environments
Output function normally open or normally closed programmable
Long sensing range of 60 mm
| Brand | ifm |
| Series | KD |
| Sensor Technology | Capacitive |
| Body Style | Rectangular |
| Detection Range | 60 mm (2.36 in) |
| Output Function | NO/NC |
| Connection Type | Screw Terminal |
| Supply Voltage | 10 → 36 V dc |
| Length | 105 mm (4.13 in) |
| IP Rating | IP65 |
| Digital Switching Output Type | PNP |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Switching Current | 200 mA |
| Switching Frequency | 10 Hz |
ifm KD501A | Capacitive Proximity Sensor | 60 mm, NO/NC
