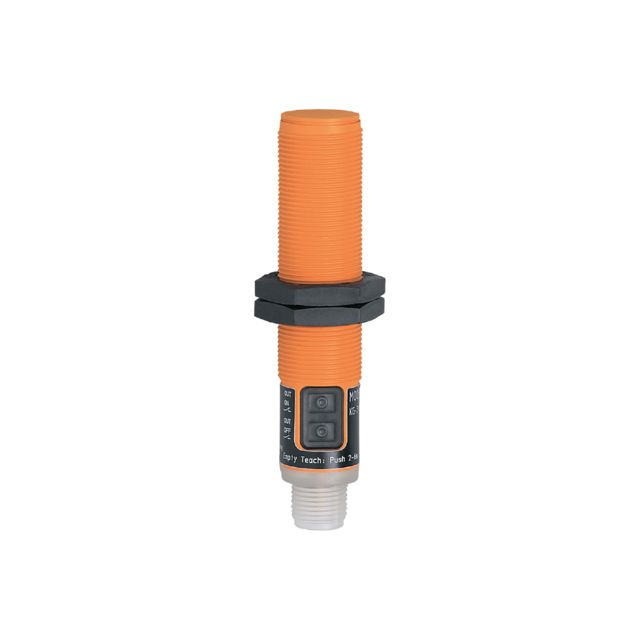

ifm KG5071 | Capacitive Proximity Sensor | 8 mm, NO/NC

Name: ifm KG5071 | Capacitive Proximity Sensor | 8 mm, NO/NC
Brand: ifm
SKU: KG5071
Availability: InStock

Part Number : KG5071

The ifm KG5071 is a capacitive proximity sensor with detection range 8 mm, output function NO/NC and supply voltage 10 → 36 V dc.

Thread Size: M18
Sensor Technology: Capacitive
Detection Range: 8 mm
Body Style: Threaded Barrel
Digital Switching Output Type: PNP
Output Function: NO/NC
Connection Type: M12
Supply Voltage: 10 → 36 V dc

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor is an exceptional solution for precise object detection in various applications. This sensor leverages advanced capacitive technology to detect non-metallic materials with unparalleled accuracy. Designed for versatile installation, it features a threaded housing for easy integration in diverse environments. With IP65 and IP67 protection ratings, the sensor is capable of withstanding challenging conditions, ensuring reliable performance even in rigorous industrial settings. The IO-Link communication interface enhances compatibility with modern automation systems, providing real-time data for optimal process control. Engineered to excel, this sensor meets stringent EMC standards, making it a trustworthy choice for sensitive operations.

Output function normally open or normally closed programmable
Clearly visible indication of the switching status via LED ring
Easy adjustment to the empty and full state via pushbutton
For position detection or level monitoring
Easy parameter setting via IO-Link

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO/NC
Connection Type	M12
Supply Voltage	10 → 36 V dc
IP Rating	IP65, IP67
Length	87mm
Mounting Type	Non-Flush
Series	KG5
Switching Frequency	10 Hz
Switching Current	200 mA
Communication Protocol	IO-LINK
Shielding	Unshielded
