ifm KI8509, Capacitive Threaded Barrel Proximity Sensor, M30, 15mm Detection, 2-Wire NC, 20 → 125 V ac/dc, 20

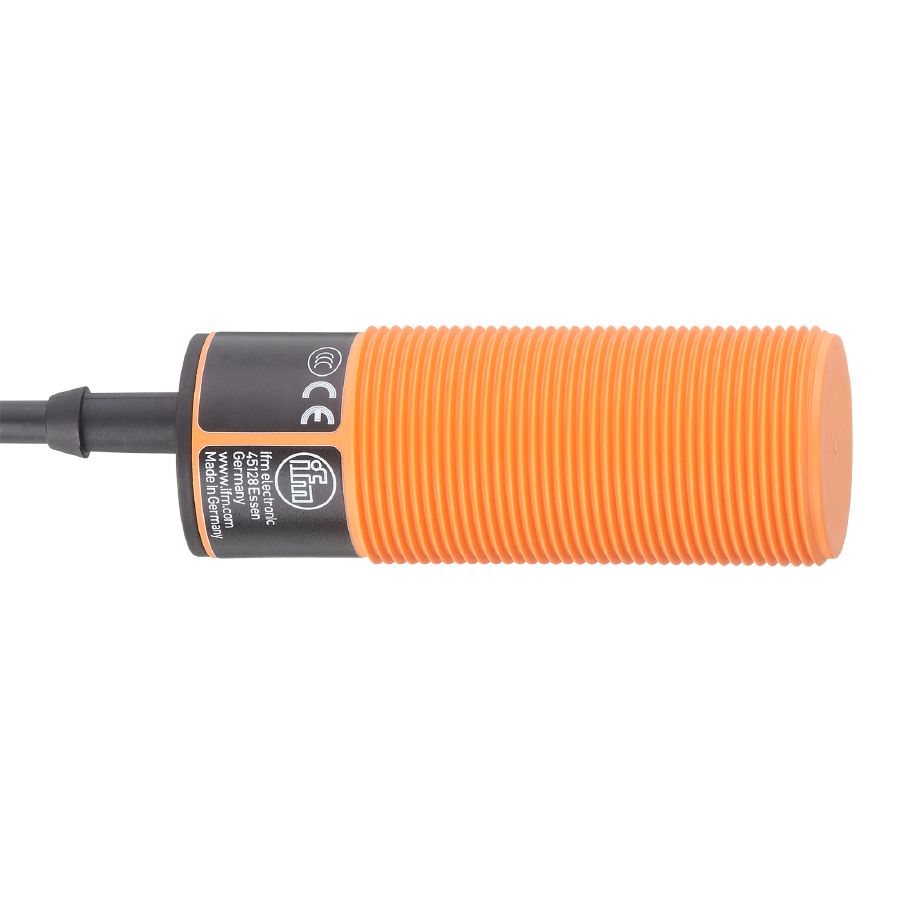

Name: ifm KI8509, Capacitive Threaded Barrel Proximity Sensor, M30, 15mm Detection, 2-Wire NC, 20 → 125 V ac/dc, 20
Brand: ifm
SKU: KI8509
Availability: OutOfStock

Part Number : KI8509

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor provides precise and reliable detection across a wide sensing range. Its robust threaded design ensures secure installation, while its high protection ratings and immunity to electromagnetic interference guarantee stable performance in challenging environments. The sensor features an intuitive LED status display for easy monitoring and adaptability to various materials.

Easy setting of the sensing range via potentiometer
With combined AC/DC output stage
Two-wire technology
High noise immunity
Clearly visible indication of the switching status

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	15mm
Output Function	NC
Digital Switching Output Type	2-Wire
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	20 → 125 V ac/dc, 20 → 125 V ac/dc
IP Rating	IP65
Length	81mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	40 Hz
Switching Current	200 mA
Series	KI
