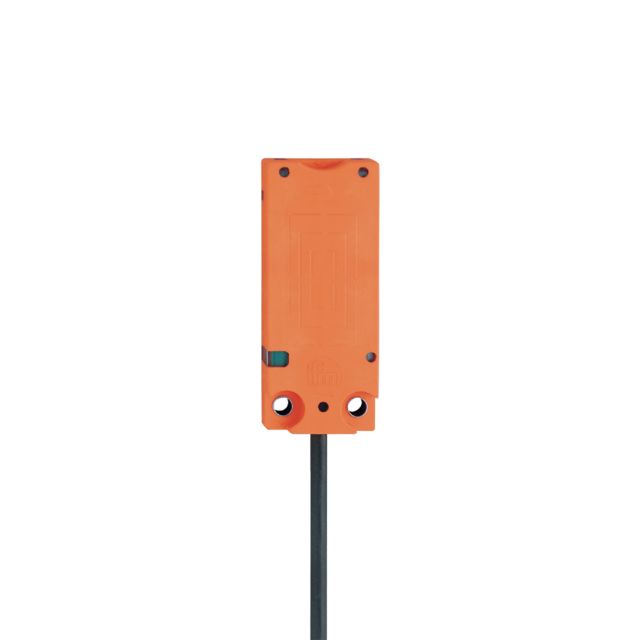

ifm KQ5100 | Capacitive Proximity Sensor | 12 mm, NO/NC
Part Number : KQ5100
The ifm KQ5100 is a capacitive proximity sensor with detection range 12 mm, output function NO/NC and supply voltage 10 → 30 V dc.
- Sensor Technology: Capacitive
- Body Style: Rectangular
- Detection Range: 12 mm
- Digital Switching Output Type: PNP
- Output Function: NO/NC
- Cable Length: 2m
- Connection Type: Pre-Cabled
- Supply Voltage: 10 → 30 V dc
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The ifm electronic capacitive sensor offers precision and versatility across various applications. Designed with a robust rectangular housing, it integrates easily into tight spaces and operates effectively across a broad temperature range. The sensor's adjustable output functions and IO-Link communication interface ensure seamless integration and reliable performance. Ideal for enhancing automation and efficiency, this sensor is well-suited for both position detection and level monitoring.
Output function normally open or normally closed programmable
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
For position detection or level monitoring
Easy parameter setting via IO-Link
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
For position detection or level monitoring
Easy parameter setting via IO-Link
| Brand | ifm |
| Series | KQ |
| Sensor Technology | Capacitive |
| Body Style | Rectangular |
| Detection Range | 12 mm (0.472 in) |
| Output Function | NO/NC |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 30 V dc |
| Length | 48 mm (1.89 in) |
| IP Rating | IP65, IP67, IP69K |
| Digital Switching Output Type | PNP |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Switching Current | 100 mA |
| Switching Frequency | 10 Hz |
| Cable Length | 2 m (6.56 ft) |
| Communication Protocol | IO-LINK |
ifm KQ5100 | Capacitive Proximity Sensor | 12 mm, NO/NC
