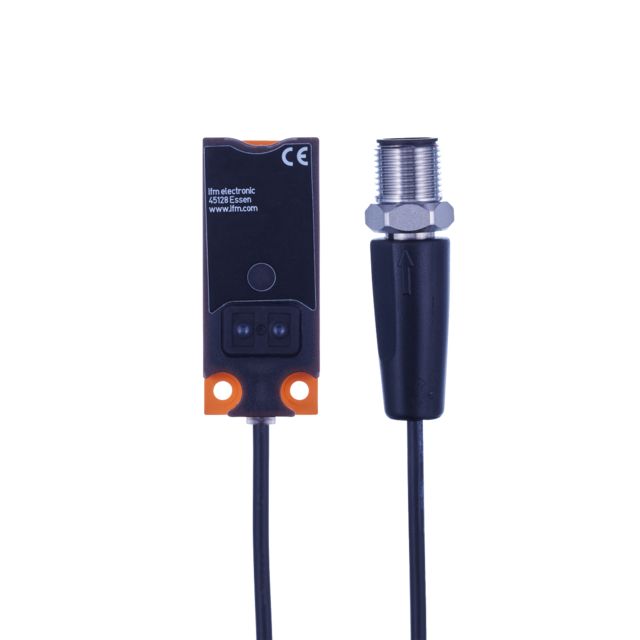

ifm KQ6016, Capacitive Rectangular Proximity Sensor, 12 mm Detection, NPN NO/NC, 10 → 30 V dc

Name: ifm KQ6016, Capacitive Rectangular Proximity Sensor, 12 mm Detection, NPN NO/NC, 10 → 30 V dc
Brand: ifm
SKU: KQ6016
Availability: InStock

Part Number : KQ6016

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers reliable detection with an innovative NPN output, adaptable for both normally open and normally closed configurations. It features robust IP65, IP67, and IP 69K protection, ensuring durability in challenging conditions and a wide temperature range from -25°C to 80°C. Equipped with IO-Link for efficient data transmission, this sensor includes a teach function and overload protection, setting a high standard for industrial sensing technology.

Output function normally open or normally closed programmable
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
For position detection or level monitoring
Easy parameter setting via IO-Link

Brand	ifm
Sensor Technology	Capacitive
Body Style	Rectangular
Detection Range	12 mm
Output Function	NO/NC
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67, IP69K
Length	48mm
Mounting Type	Non-Flush
Switching Current	100 mA
Communication Protocol	IO-LINK
Series	KQ
Switching Frequency	10 Hz
Shielding	Unshielded
