ifm PT5043, PT Series Pressure Transmitter, 0bar Min, 40bar Max, Analogue Output, Relative Reading

Part Number : PT5043

Availability: Sold out

Detailed Description
Specifications
Downloads

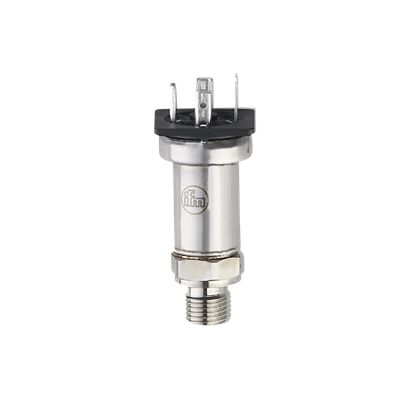

The ifm electronic pressure transmitter is designed for precision measurement of liquids and gases in various industrial and mobile applications. Boasting a measuring range of 0 to 40 bar, it ensures reliable pressure readings with high accuracy and repeatability. Featuring a sturdy stainless steel housing and IP67 protection rating, this transmitter is built to withstand harsh environments. With a single analogue output and a wide operating voltage of 8 to 36 DC, it offers flexibility and adaptability for diverse integration needs. Its advanced construction allows for a long lifespan, making it an ideal choice for critical monitoring tasks.

Robust metallic thin film cell measuring element ensures high reliability
Exceptional repeatability of less than ± 0.05% under stable temperature conditions
Wide ambient and storage temperature ranges of -40 to 100 °C facilitate use in extreme conditions
Short response time of 2 ms for rapid measurement adjustments

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	40bar
Accuracy	± 0.5
Output Type	Analogue
Series	PT
