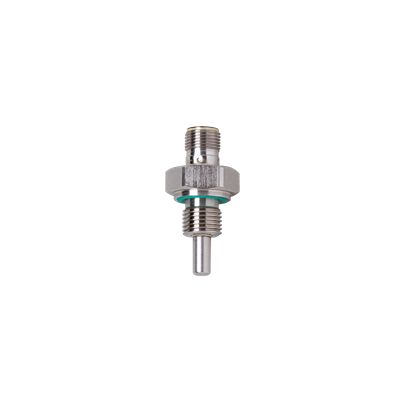

ifm TM5101, Temperature Sensor Temperature Sensor, 6mm Dia, 12mm Long, G 1/4, ± 0.15 +150°C Max

Name: ifm TM5101, Temperature Sensor Temperature Sensor, 6mm Dia, 12mm Long, G 1/4, ± 0.15 +150°C Max
Brand: ifm
SKU: TM5101
Availability: InStock

Part Number : TM5101

Availability: low stock

Detailed Description
Specifications
Downloads

DPO / MSO3000 series digital phosphor oscilloscope

Feature-rich tools for debugging mixed signal designs
>50,000 wfm/s maximum waveform capture rate
16 digital channels (MSO series)
500, 300 and 100 MHz bandwidth models
Suite of advanced triggers
Input coupling: DC, AC or GND
I/O ports: USB 2.0 host, USB 2.0, LAN, video out, auxiliary BNC, probe compensator output, trigger output, Kensington lock
Maths: arithmetic, integrate, differentiate, FFT, advanced maths
Compliant with: 89/336/EEC
Safety: UL61010-1, CAN/CSA C22.2 N.1010.1 1992, EN61010-1:2001, IEC61010:2001
Supply voltage: 85 V → 256 V ±10%
Operating frequency: 45 Hz → 440 Hz
Power consumption: 120 W max
Dimensions: 203.2 x 413.6 x 137.2 mm
Software: NI LabViEW SignalExpress Tektronix Edition, OpenChoice Desktop, IVI driver

Supplied with

P6139A 10x 500 MHz passive probe for analogue channels, front cover, user guide, CD containing documentation, OpenChoice® Desktop software, NI LabVIEW SignalExpress™ Tektronix Edition LE software, calibration certificate stating traceability to national meteorological institutions and ISO9001 certification, power cable and accessory bag.

The ifm electronic temperature sensor with process connection is meticulously designed to offer precise temperature measurements across a broad range, from -40 to 150 °C (-40 to 302 °F). With its robust threaded connection, this sensor is ideal for installation in diverse industrial applications involving liquids and gases. The housing, made from stainless steel (316L/1.4404), ensures durability even in challenging conditions. Featuring gold-plated contacts and designed according to DIN EN 60751 standards, this sensor provides high accuracy and reliability. Enhanced with IP 68 and IP 69K protection ratings, it is suitable for harsh environments, while its compact dimensions make it a versatile choice for installations where space is a concern.

Measuring range of -40 to 150 °C, making it suitable for a variety of applications
Robust G 1/4 threaded connection for secure mounting
Features gold-plated contacts for improved electrical conductivity and durability
Compact design with a probe diameter of just 6 mm, allowing for versatile installation options

DPO / MSO3000 series digital phosphor oscilloscope

Brand	ifm
Sensor Type	Temperature Sensor
Probe Length	12mm
Probe Diameter	6mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+150°C
Process Connection	G 1/4
Accuracy	± 0.15
