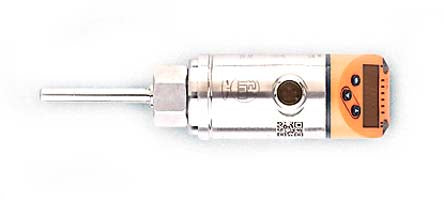

ifm TN7511, PT1000 RTD Sensor, 6mm Dia, 45mm Long, 4 Wire, M18, +150°C Max

Part Number : TN7511

Availability: Sold out

Detailed Description
Specifications

ifm Electronic TN Series Temperature Transmitter

Ifm Electronic TN series temperature sensors feature excellent response times, high-pressure resistance and integrated process connections. The sensors easily resist applications with temperatures up to 150°C and high pressure loads up to 400 bar. The measuring range has freely scalable parameters that can bet set via an integrated IO-Link interface.

A simple three push button operation with integrated display allows switching states to be highlighted. The sensor head can be rotated and offers optimum readability from any position.

Features and Benefits

IO-Link interface
4-digit alphanumeric display
LED status indicators
IP67 Rated
2 switching outputs

Brand	ifm
Sensor Type	PT1000
Probe Length	45mm
Probe Diameter	6mm
Minimum Temperature Sensed	-50°C
Maximum Temperature Sensed	+150°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	M18
Interface	IO-Link
Number Of Wires	4
Response Time	3 s
