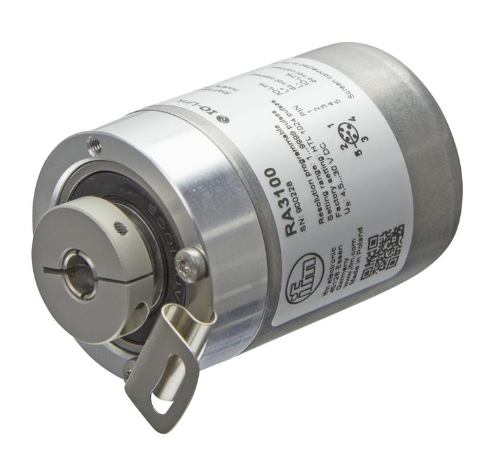

ifm RA3100 | Encoders | 4.75-30 DC V
The ifm RA3100 is an encoders with electrical design HTL/TTL, operating voltage 4.75-30 DC V and current consumption <150. ifm lists defined pulse sequence for the reliable detection of rotational speeds, for precise position determination and linear measurement and user-friendly communication and parameterization via IO-Link among its features.
- Current consumption: <150
- Electrical design: HTL/TTL
- Operating voltage: 4.75-30 DC V
- Protection class: III
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Switching frequency DC: 1000 Hz
- Weight: 267g
- Specifications
- Features
- Downloads
| Weight | 267g |
| Current Consumption [mA] | <150 |
| Electrical Design | HTL/TTL |
| Operating Voltage [V] | 4.75-30 DC V |
| Protection Class | III |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 1000 Hz |
- Defined pulse sequence for the reliable detection of rotational speeds
- For precise position determination and linear measurement
- User-friendly communication and parameterization via IO-Link
- High shock and vibration resistance
- Resolution freely programmable from 1 ... 10,000
