IO-Link Master DataLine ifm electronic AL1320

Name: IO-Link Master DataLine ifm electronic AL1320
Brand: ifm
SKU: AL1320
Availability: OutOfStock

Part Number : AL1320

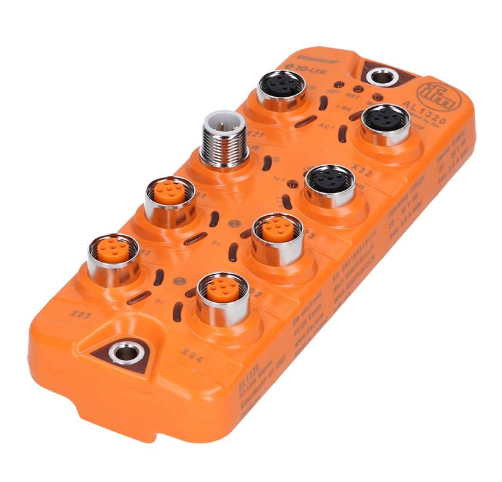

The IO-Link Master DatatLine - AL1320 from ifm electronic with EtherNet/IP interface offers a more secure transmission of sensor information with a transmission rate of 10/100 Mbit/s by separating your automation and IT network. Up to 4 IO-Link sensors can be connected to the IO-Link Master DataLine - AL1320. The connection is made via an M12 plug connection.

Availability: Sold out

Specifications
Features

Ambient temperature	-25...60
Current consumption [mA]	300...3900; (US)
Operating voltage [V]	20-30 DC V
Protection class	III
Short-circuit protection	yes
Storage Temperature	-25...85
Weight	271g

Separation between automation network and IT network
For connection of up to four IO-Link devices
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With EtherNet/IP interface and separate MQTT JSON interface
Robust housing for use in harsh industrial environments
