IO-Link Master PowerLine ifm electronic AL1222

Name: IO-Link Master PowerLine ifm electronic AL1222
Brand: ifm
SKU: AL1222
Availability: OutOfStock

Part Number : AL1222

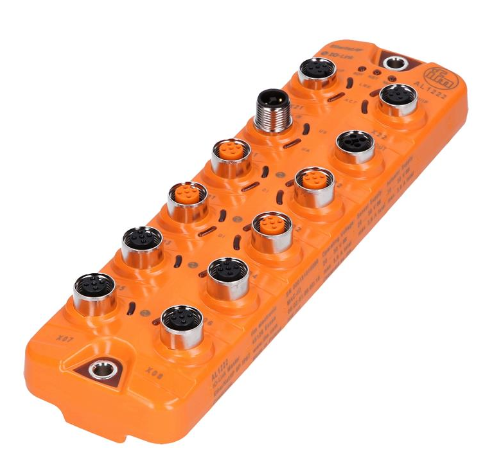

The IO-Link Master PowerLine - AL1222 from ifm electronic with EtherNet/IP interface offers a more secure transmission of sensor information with a transmission rate of 10/100 Mbit/s by separating your automation and IT network. Up to 8 IO-Link sensors (4 Class A, 4 Class B) can be connected to the IO-Link master PowerLine - AL 1222. The connection is made via an M12 plug connection.

Availability: Sold out

Specifications
Features
Downloads

Ambient temperature	-25...60
Application	I/O modules for field applications
Current consumption [mA]	300...3900; (US)
Material	housing: PA; Socket: brass nickel-plated
Operating voltage [V]	20-30 DC V
Protection class	III
Protection	IP 65; IP 66; IP 67
Short-circuit protection	yes
Weight	407g

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to eight IO-Link devices
With integrated EtherNet/IP interface
PowerLine version for the supply of actuators
